Welcome to Lingdong Intelligent

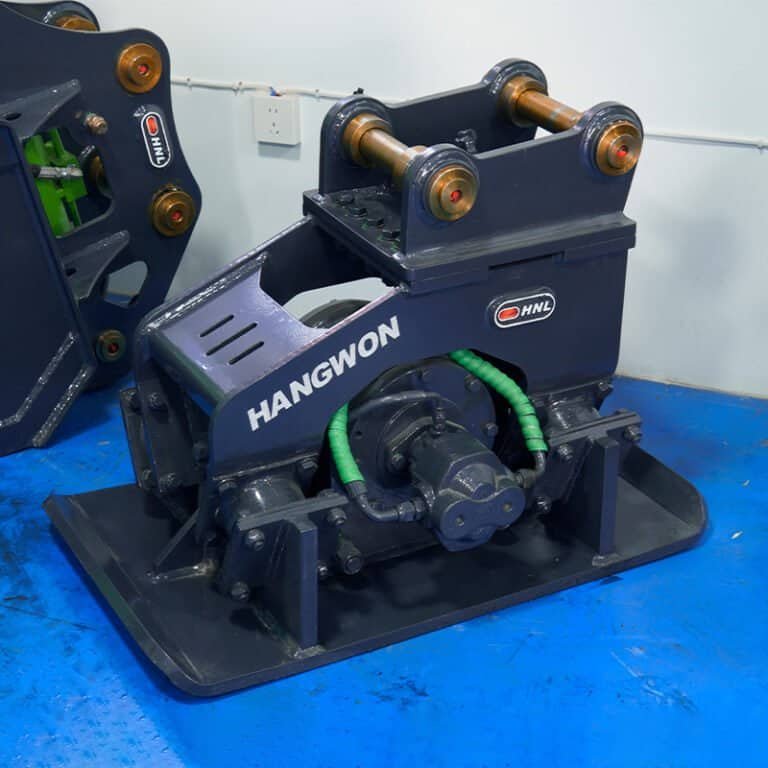

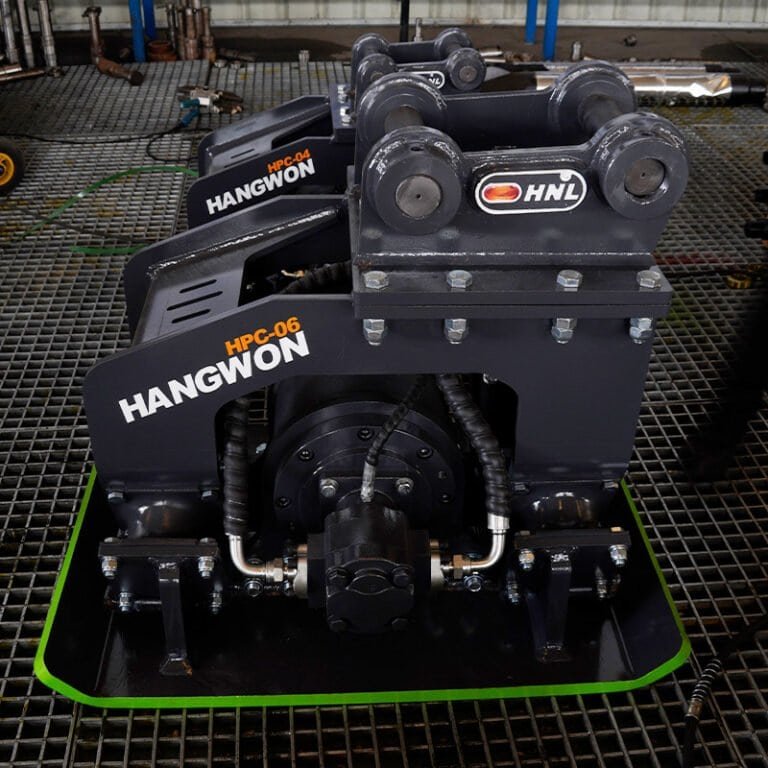

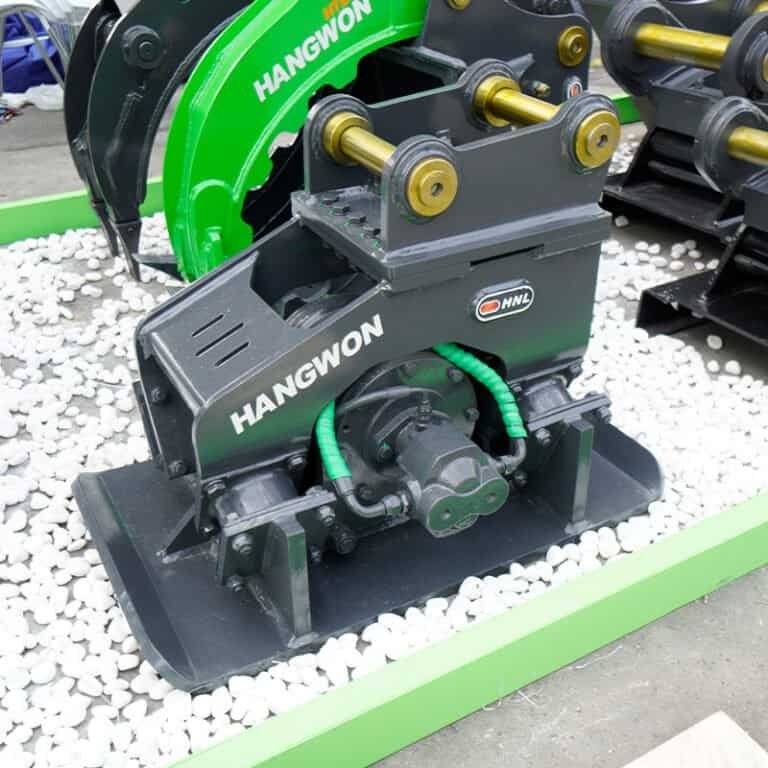

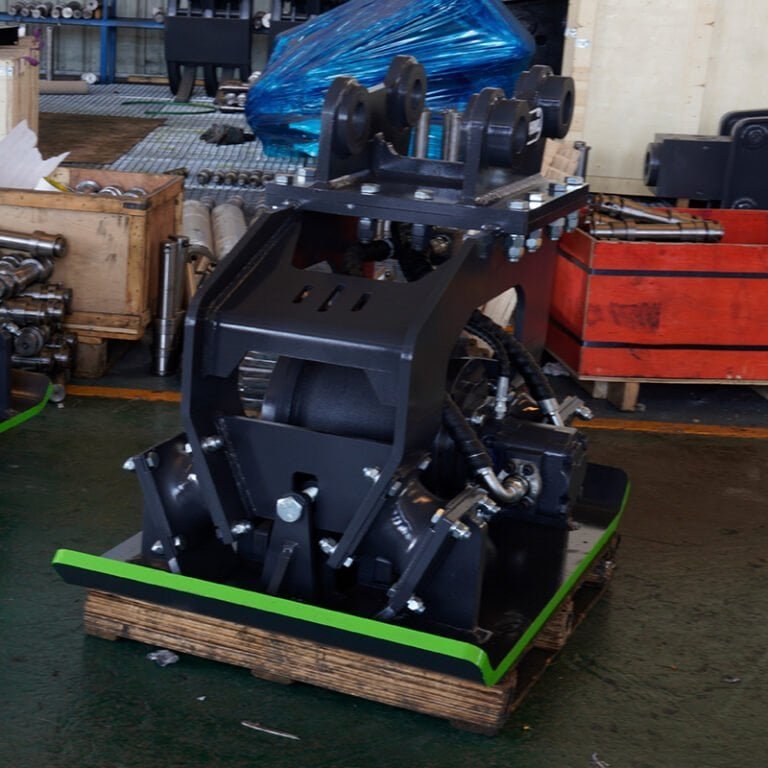

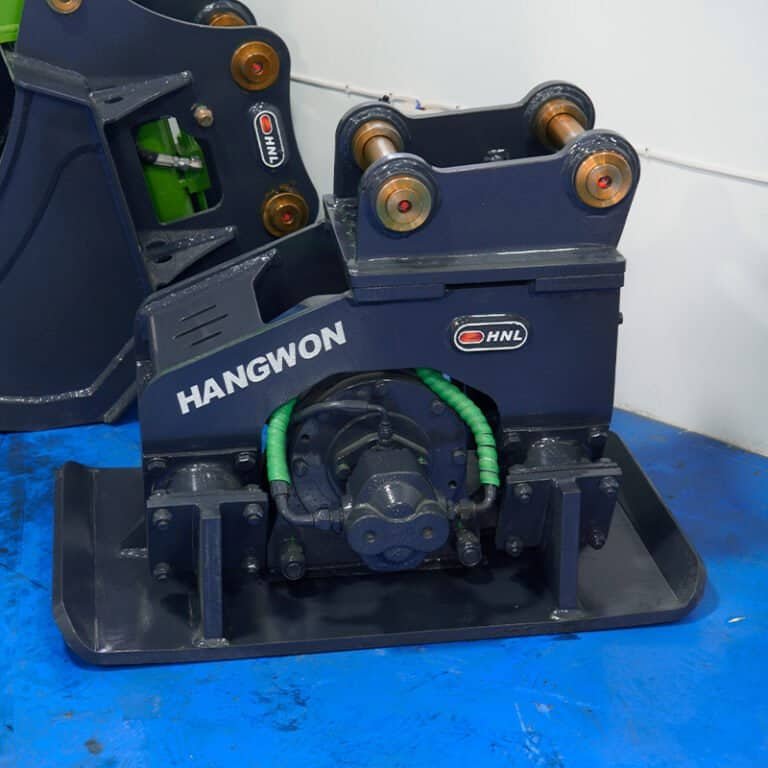

Vibration rammer
Suitable for excavators weighing 2-40 tons
Imported motor, high-efficiency, stable, high-grade shock-absorbing block, long life
The rammer base plate adopts thickened wear-resistant plate, which is not easy to crack and wear-resistant
Can be customized according to needs
Product Description
Vibration rammer
Suitable for excavators weighing 2-40 tons
Imported motor, high-efficiency, stable, high-grade shock-absorbing block, long life
The rammer base plate adopts thickened wear-resistant plate, which is not easy to crack and wear-resistant
Can be customized according to needs
All introductions and configurations are basic models, Lingdong Company has the right to change parameters and the final right of interpretation
Parameter table:
Model Model HPCmin HPC04 HPC06 HPC08 HPC10
Weight 200kg 500kg 800kg 1000kg 1300kg
Strike force 15 ton
Impact force 3 ton 4 ton 6.5 ton 11 ton
Vibration frequency
Vibration frequency 2000rpm/min 2000rpm/min 2000rpm/min 2200rpm/min 2200rpm/min
Hydraulic oil flow 30-60L/min 45-85L/min 85-105L/min 120-170L/min 120-170L/min
Working pressure 100-130 bar 150-200 bar
Working pressure 100-130 bar 100-150 bar 150-200 bar
Compatible Excavator 18-24 ton
Compatible Excavator 2-4 ton 4-10 ton 12-16 ton 30-40 ton
