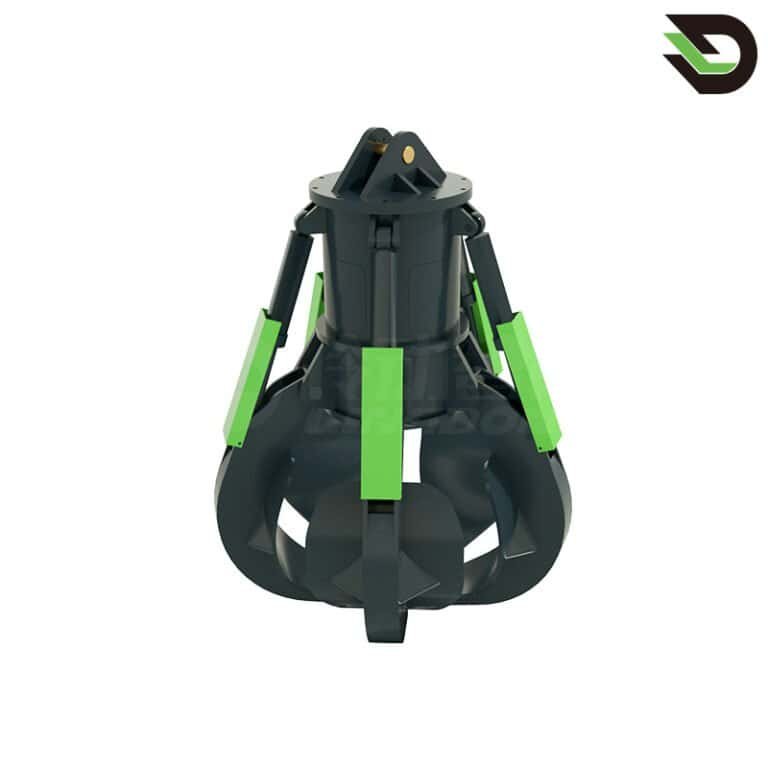

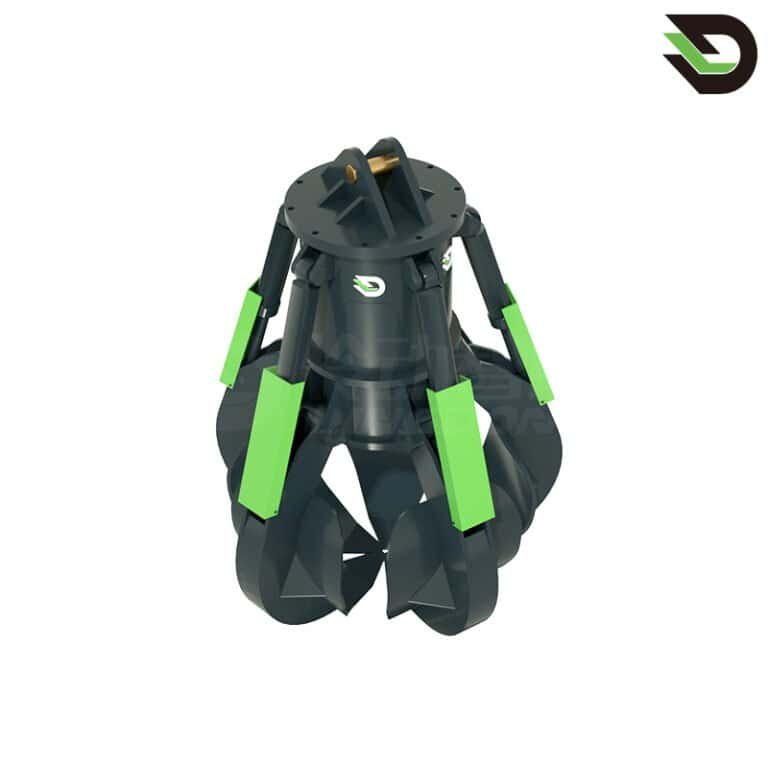

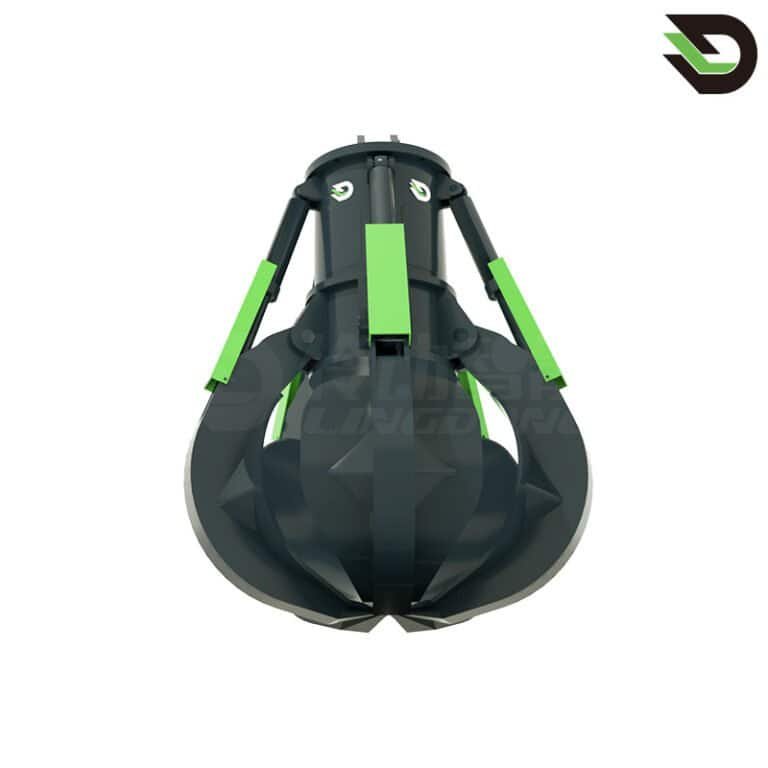

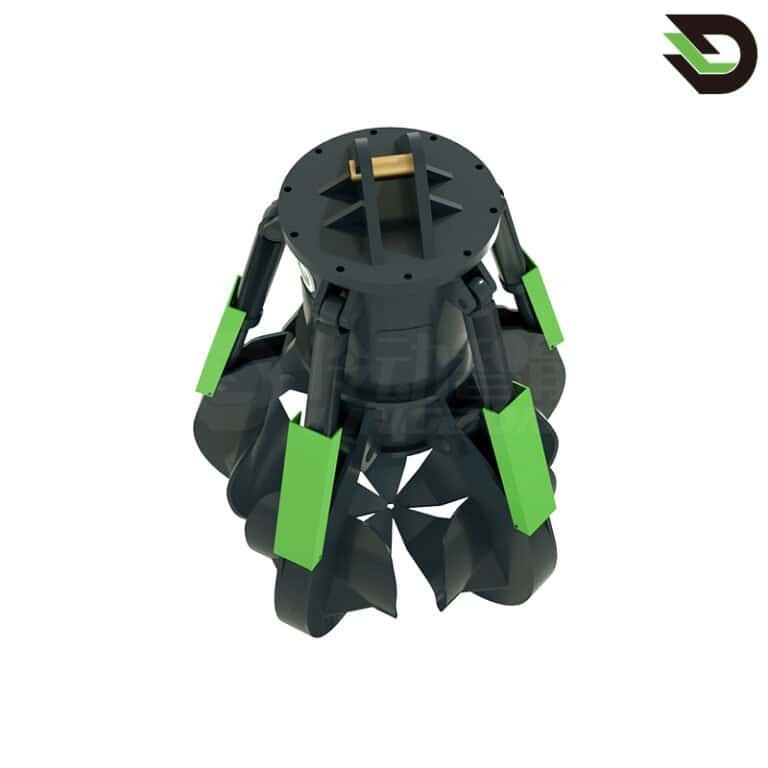

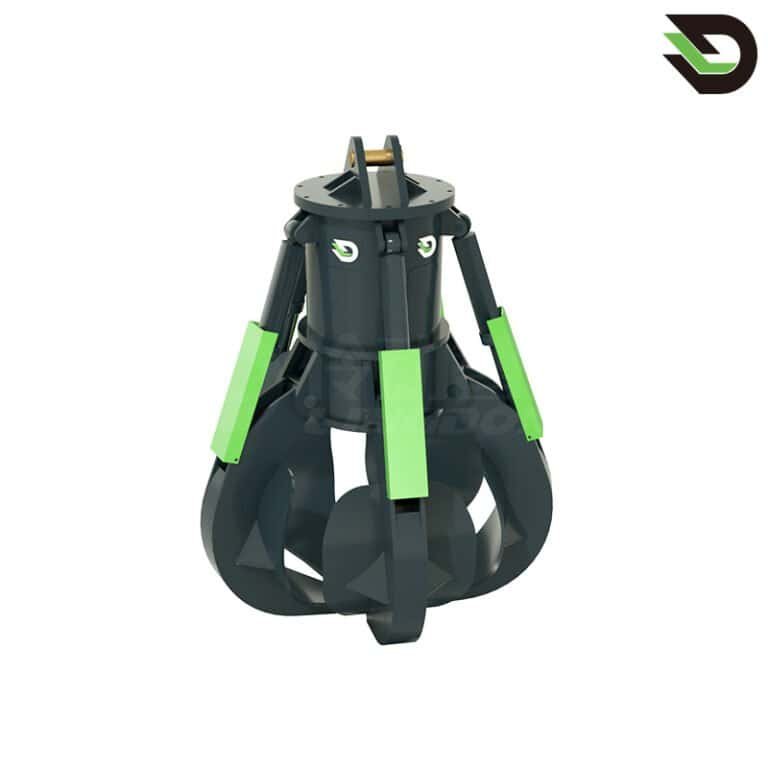

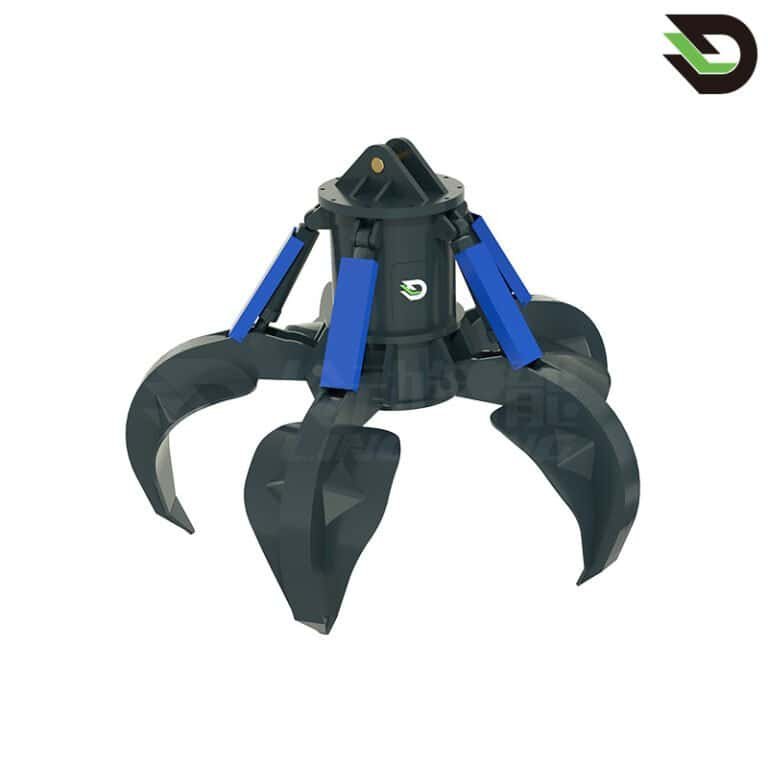

Clamshell grapple
Suitable for excavators weighing 3-35 tons
The petals are made of high-strength wear-resistant plates, which are not easy to deform and have a long service life
The gripping force is large, and the 360-degree rotation function can be added as required
Can be customized according to requirements
Product Description
Lotus grip
Suitable for excavators weighing 3-35 tons
The petals are made of high-strength wear-resistant plates, which are not easy to deform and have a long service life
The gripping force is large, and the 360-degree rotation function can be added as required
Can be customized according to requirements
All introductions and configurations are basic models, Lingdong Company has the right to change parameters and the final right of interpretation
Parameter table:
Model Model OPG01 OPG02 OPG03 OPG04 OPG05
Weight
Weight 245kg 577kg 1060kg 1465kg 2085kg
Opening angle
Maximum opening 1100mm 1200mm 1600mm 2000mm 2500mm
Closed volume
Closed volume 0.12m³ 0.15m³ 0.25m³ 0.55m³ 0.85m³
Cylinder thrust
Cylinder thrust 3 ton 3 ton 5 ton 9 ton 15 ton
Compatible Excavator
Compatible Excavator 3-4 ton 4-9 ton 10-15 ton 15-25 ton 25-35 ton
