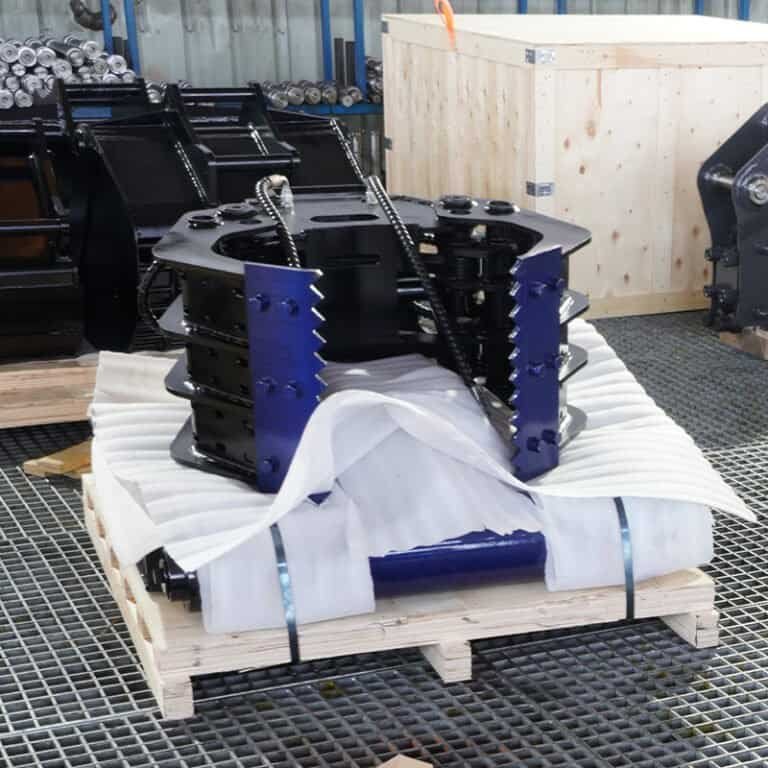

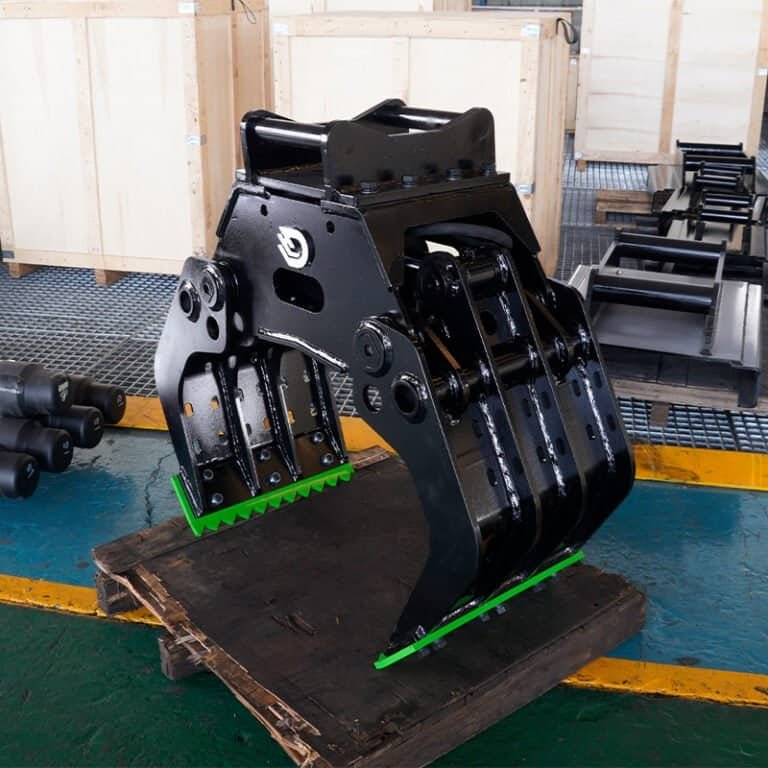

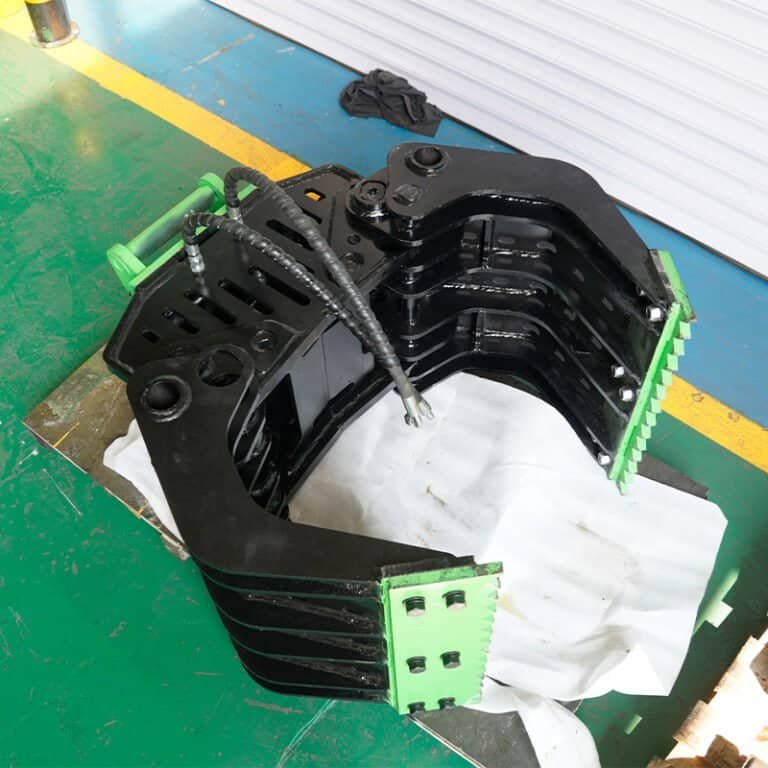

Stone grapple

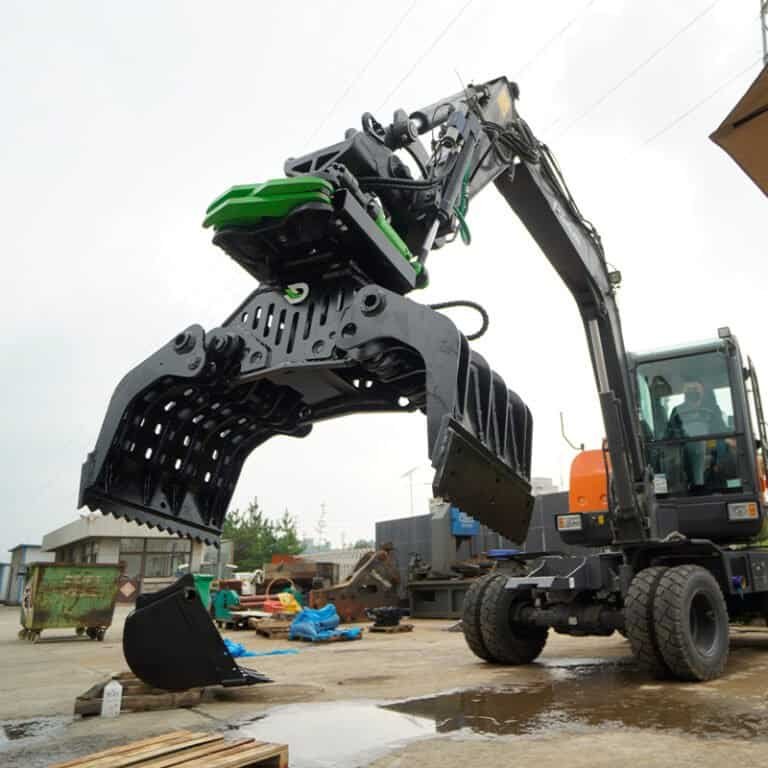

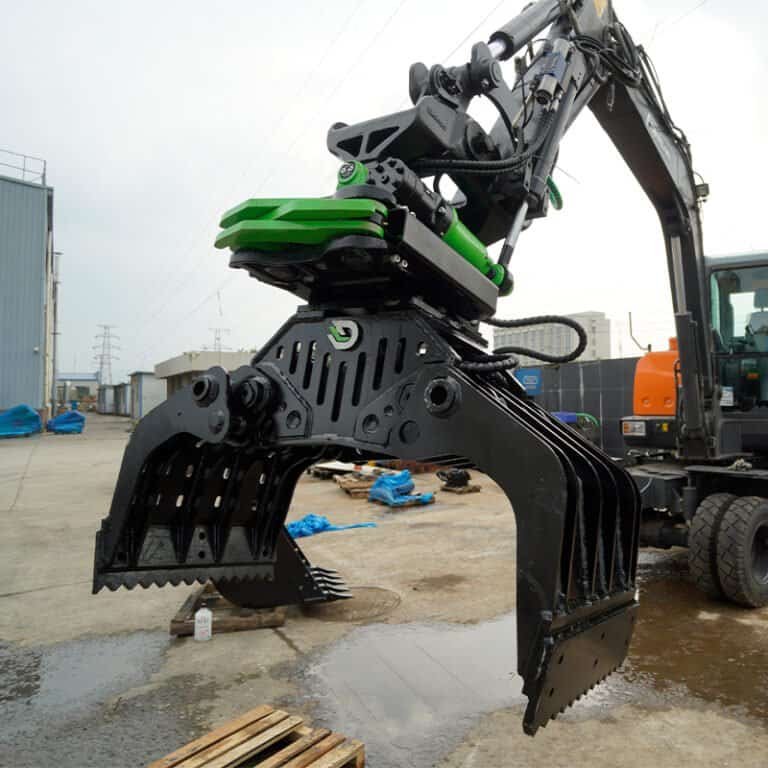

Rock grab for tiltrotator
Suitable for excavators weighing 3-25 tons
Can grab large and small debris together, more wear-resistant and longer service life
Motor brake function, cylinder equipped with safety lock valve for stable use and low failure rate
Guard plate can be added to make it a shell bucket
Can be customized according to needs
All introductions and configurations are basic models, Lingdong Company has the right to change parameters and the final right of interpretation
Parameter table:
Model HDG01 HDG02 HDG04 HDG06 HDG08
Weight 120kg 240kg 240kg 420kg 560kg
Opening angle
Maximum opening 1000mm 1200mm 1200mm 1600mm 1800mm
Closed volume 0.6m3
Closed Capaity 0.09m3 0.15m³ 0.2m³ 0.34m
Rotation Angle Rotation Angle ±360° ±360° ±360° ±360° ±360°
Operating Flow Necessary Flow 25-40 lpm 30-55 lpm 50-100 lpm 90-110 lpm 100-140 lpm
Compatible Excavator 3-4 ton 4-6 ton 6-9 ton 12-16 ton 17-25 ton
