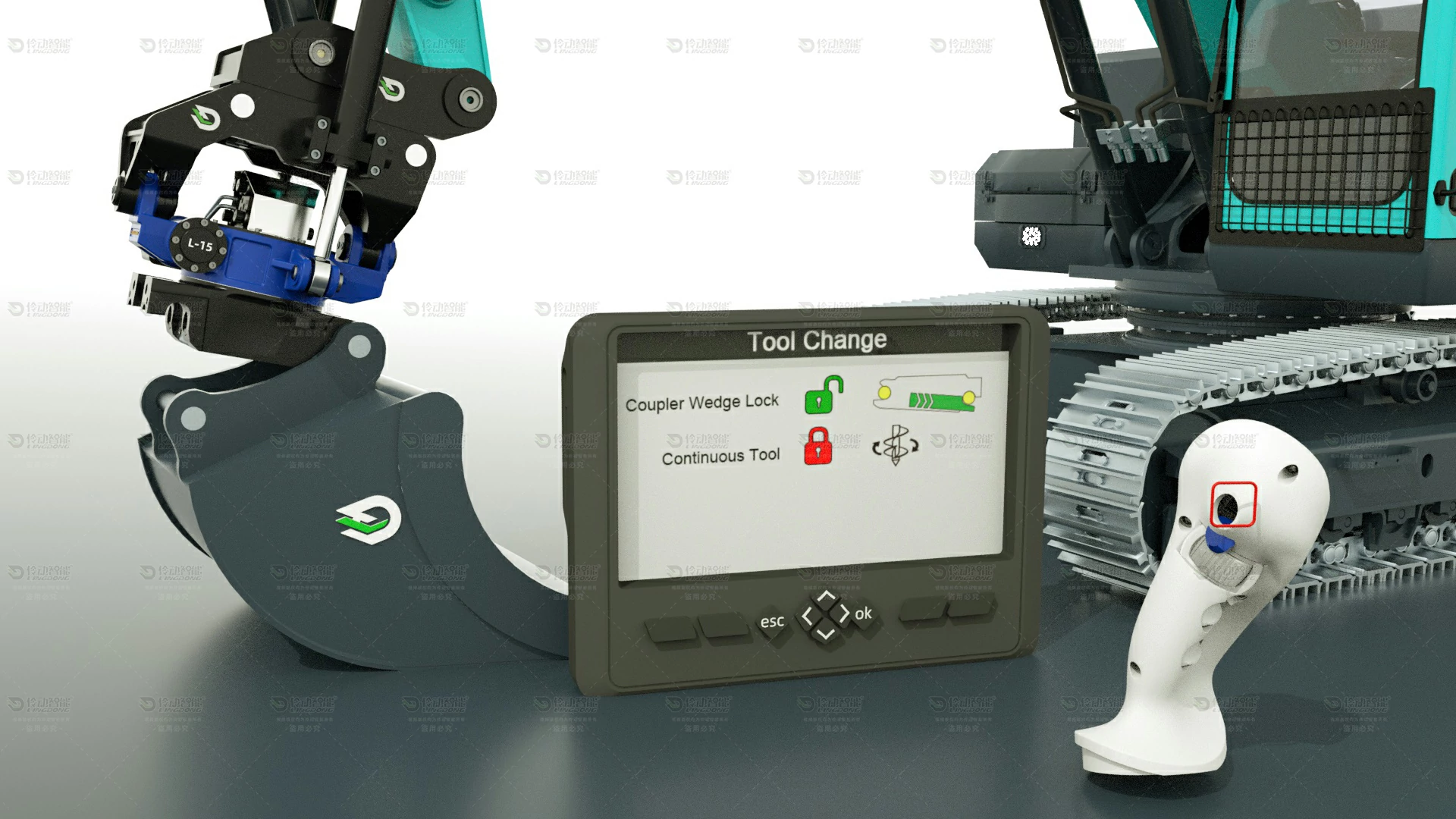

How do you safely change attachments on the Lingdong Tiltrotator?

This step-by-step guide shows how the Lingdong Tiltrotator (Hydraulic Wrist) makes attachment changing fast, safe, and fully controlled through its intelligent system — designed for modern Excavator operations and professional Excavator tools.

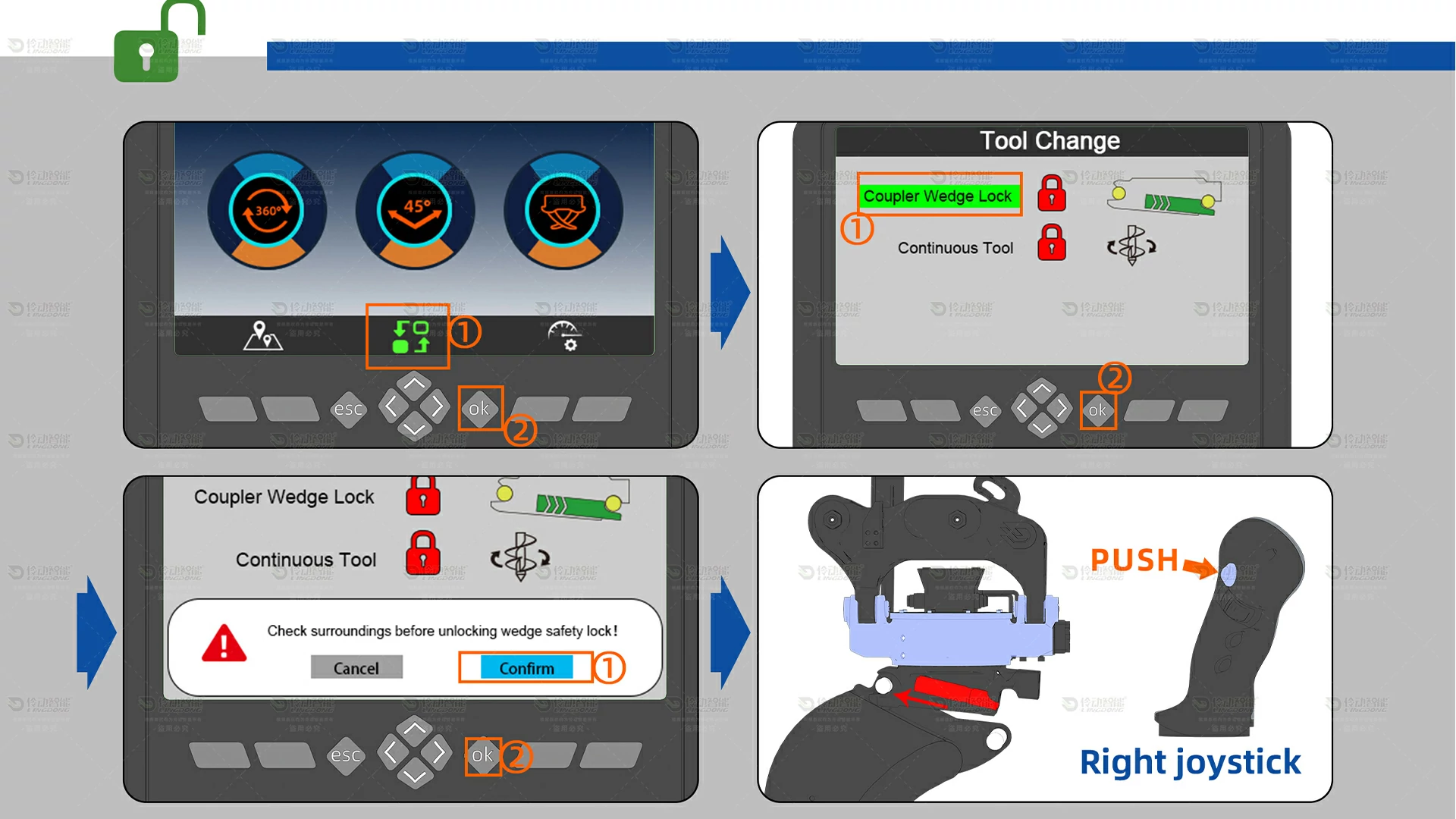

🔄 How to Unlock LINGDONG tiltrotator tools

To remove an attachment from the Lingdong Tiltrotator:

1️⃣ Enter Tool Change Mode
On the main control panel, select the attachment change icon
Press OK to enter the tool change interface
2️⃣ Activate Quick Coupler Wedge Safety Lock
Select the quick coupler Wedge safety option
Press OK again

A safety prompt will appear:
👉 “Check surroundings before unlocking wedge safety lock!”

Confirm and press OK
The tiltrotator coupler wedge is now in unlock-ready state
3️⃣ Unlock via Joystick
Press the quick coupler button on the back of the right joystick
The tiltrotator tools is safely unlocked and released

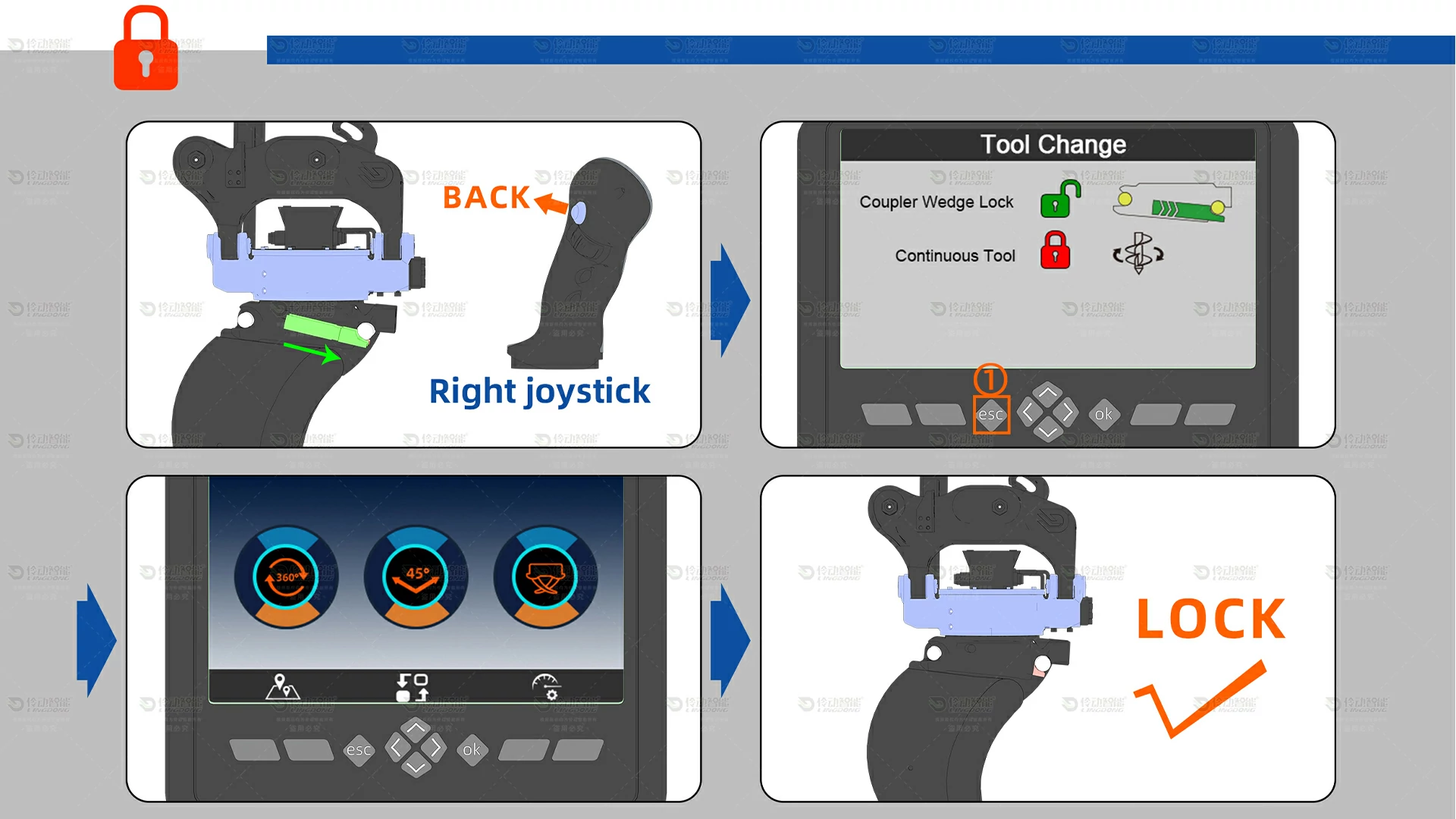

🔒 How to Lock an LINGDONG tiltrotator tools

To securely mount and lock an tiltrotator tools:

1️⃣ Attach the tiltrotator tools
Mount the tiltrotator tools and ensure proper alignment
2️⃣ Lock with Joystick
Release the quick coupler button on the right joystick
The locking wedge automatically extend
The tiltrotator tools is firmly secured
3️⃣ Exit the System
Press ESC to exit the tool change interface
Return to the main control panel
4️⃣ System Confirmation
The control software verifies the lock status
Once confirmed, the system allows safe operation

🚀 Why Lingdong Tiltrotator Is Safer

The Lingdong Tiltrotator integrates:

✔ Intelligent control panel system
✔ Hydraulic locking mechanism
✔ Safety confirmation prompts
✔ Operator-controlled unlocking process

This ensures every attachment change is controlled, safe, and reliable — reducing risks on the job site.

🏗️ Built for Modern Excavation

As a leading China Tiltrotator solution, Lingdong combines:

Advanced rotortilt / rotator technology
Smart Hydraulic Wrist control system
Compatibility with multiple China attachments
High-efficiency workflows for Excavator tools

From buckets to grapples and compactors, switching tools becomes seamless and efficient.
