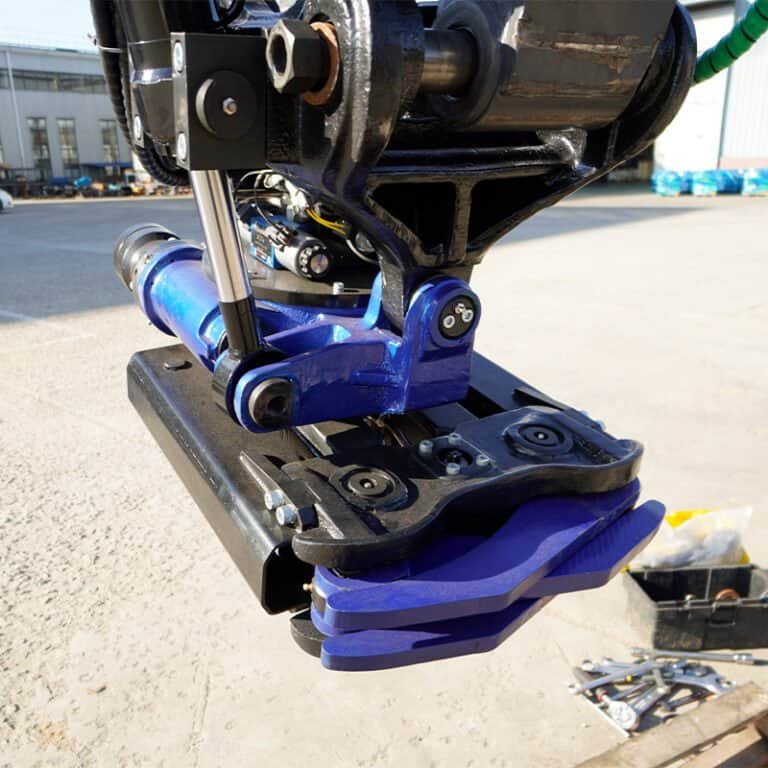

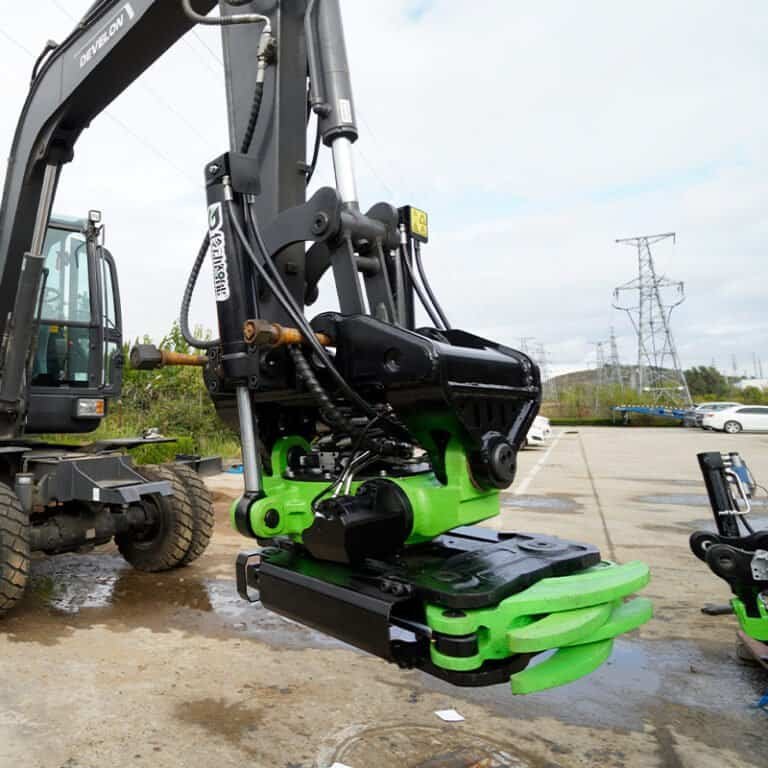

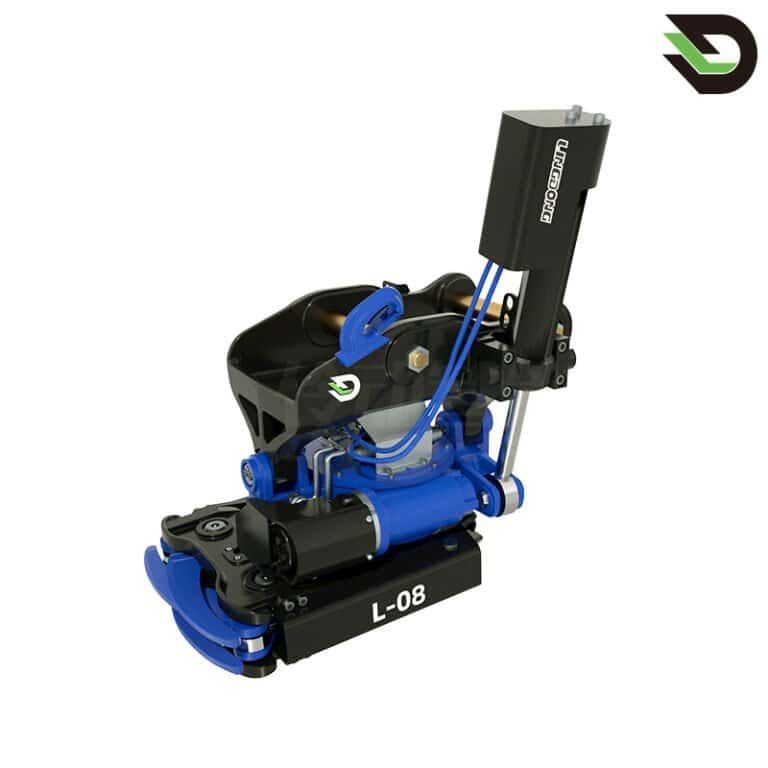

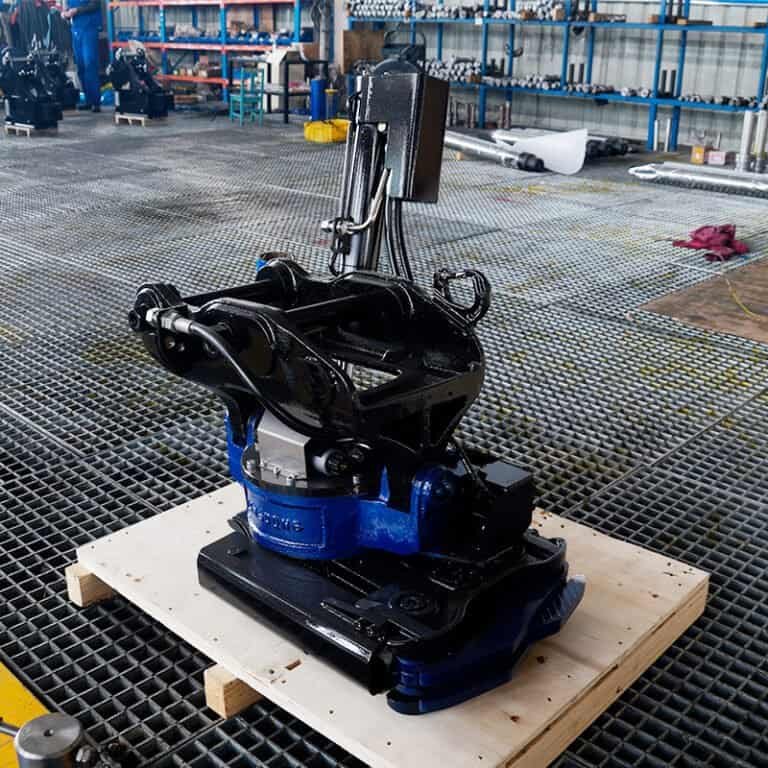

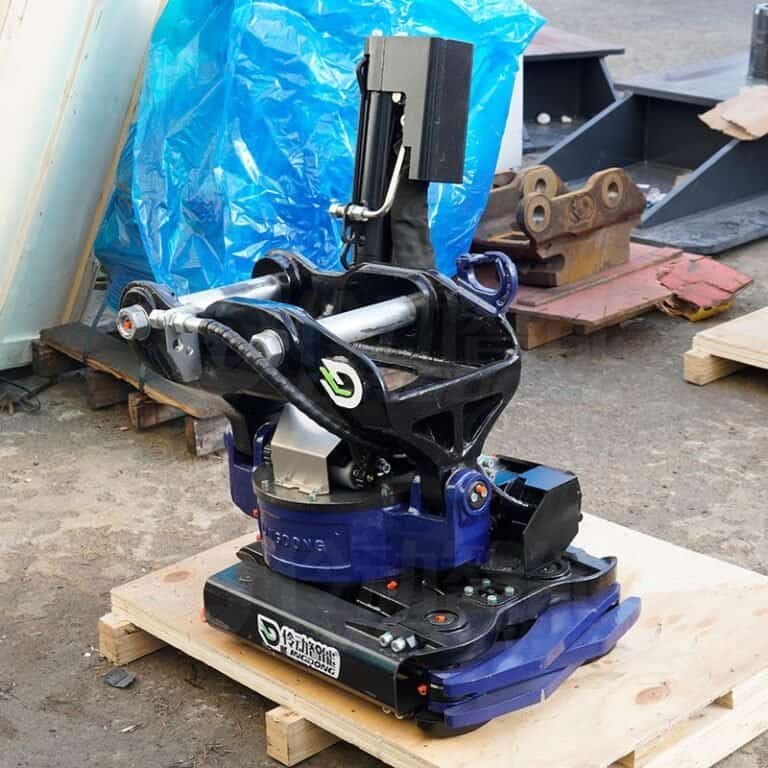

Hydraulic Tilt Rotators L08
⚪Applicable to 6-9 ton excavators
⚪Specially optimized for medium-sized excavators below 9 tons, safer, more efficient, and less excavator movement
⚪With front finger clamps, it is easy to carry and clamp accessories or construction facilities
⚪Optional direct installation or multi-layer composite installation
⚪Perfectly adapt to the Lingdong tilt rotator tool ecosystem
⚪Equipped with LD-LOCK locking technology to ensure construction safety
⚪Adapted to LD-WEIST system, standard 7-inch LCD, pro series standard posture lock can achieve more functions
⚪Optional automatic oil circuit conduction function, you can change tools without leaving the cab
⚪All introductions and configurations are basic models, Lingdong Company has the right to change parameters and the final right of interpretation
Product Description
Hydraulic Tilt Rotators L08 Technical parameter
| Model | L-08/pro |
|---|---|
| Compatible Excavator | 6T-9T |
| Upper Pin Diameter | 40-50mm |
| Upper Pin Spacing | 150-250mm |
| Upper Pin Center Distance | 260-350mm |
| Lower Quick Coupler Pin Diameter | 45mm |
| Lower Quick Coupler Spacing | 200mm |
| Lower Quick Coupler Center Distance | 305mm |
| Maximum Tilt Angle (Degrees) | ±45 |
| Flow Rate | 18-38L/min |
| Maximum Working Pressure | 220BAR |
| Finger Grab Opening | 310mm |
| Finger Grab Safe Load | 120KG |
| Tilting Torque | 15KNM |
| Rotating Torque | 6.5KNM |
| Weight | 275KG |
| display and control screen | Standard |
| Multi-function Joystick | Standard |
| Multi-language Support | Standard |
| Position Lock | no/Standard |
| Horizontal Attitude Simulator | Optional |
| Automatic Hydraulic Coupling | Optional |
The Hydraulic Tilt Rotators L08 is designed for compact excavators and loaders, usually in the 6-9 ton range, offering enhanced flexibility and control in a variety of applications. It enables operators to rotate and tilt attachments up to 360° and 45° respectively, which significantly improves maneuverability and precision, especially in confined or complex environments. Here are some key features and benefits of the L08 model:
