In the evolving tiltrotator market, efficiency and safety are becoming just as important as performance. The Lingdong tiltrotator introduces the LQ automatic hydraulic connection system, a key innovation that simplifies attachment changes and improves jobsite productivity.

As a leading solution in the china tiltrotator industry, the Lingdong LQ system eliminates the need for manual hose connection—bringing true automation to excavator attachment workflows.

How the LQ Automatic Hydraulic Connection Works

The Lingdong tiltrotator LQ system is designed with a simple but highly effective principle.

From the excavator’s main pump:

* Two high-pressure hydraulic lines (one supply, one return) are routed to the quick coupler

Inside the LQ automatic quick coupler:

* These hydraulic lines are securely held by an internal sliding block mechanism

On the tiltrotator side:

* Matching hydraulic quick connectors are integrated into the upper frame

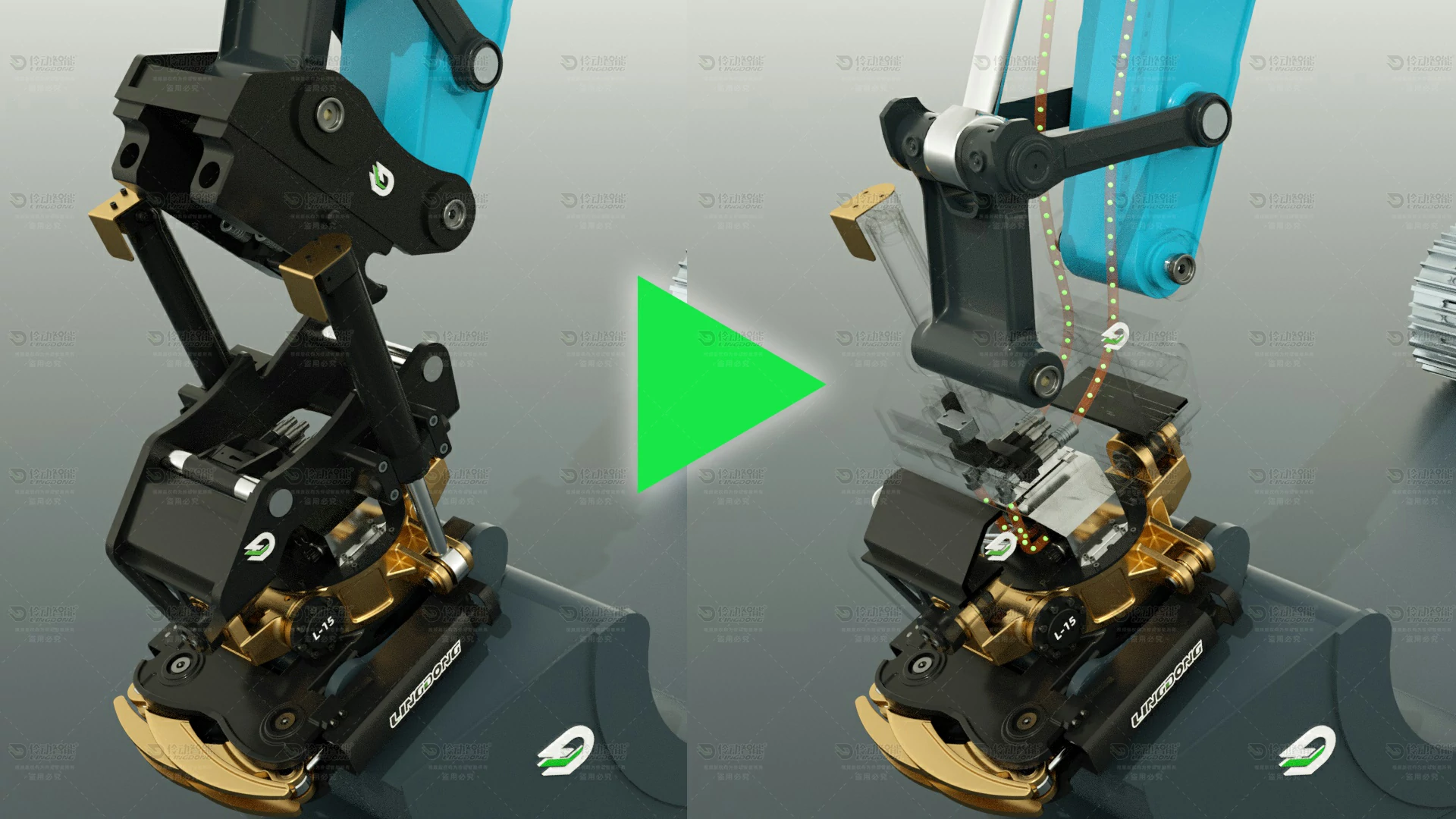

Automatic Connection During Coupling

When the LQ quick coupler is correctly connected to the Lingdong tiltrotator:

1. The coupler locks into position
2. The internal sliding block moves forward
3. It pushes the hydraulic connectors into alignment
4. The connectors engage automatically

➡ At this moment, hydraulic oil begins circulating into the tiltrotator system automatically

No manual hose connection is required.

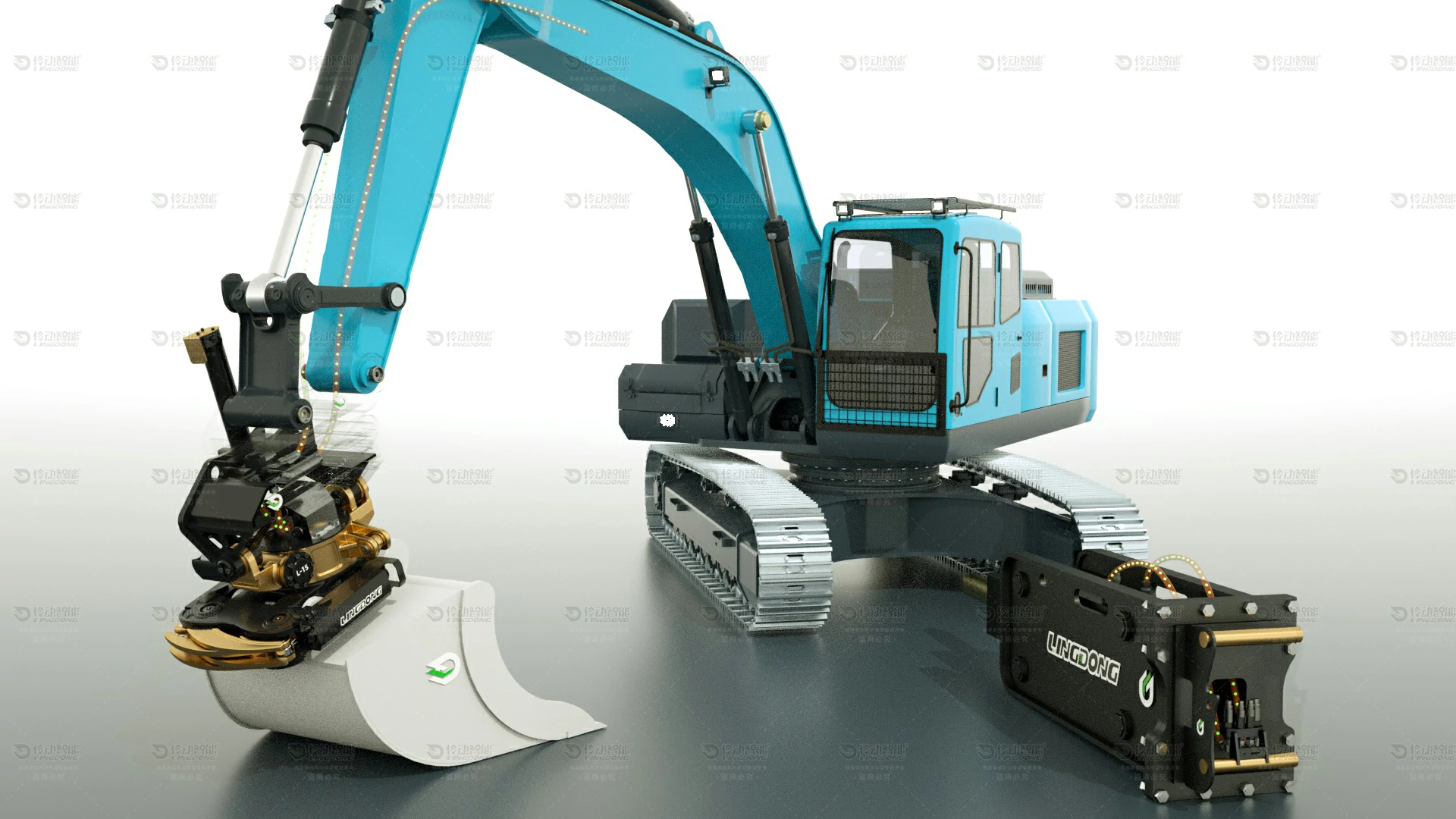

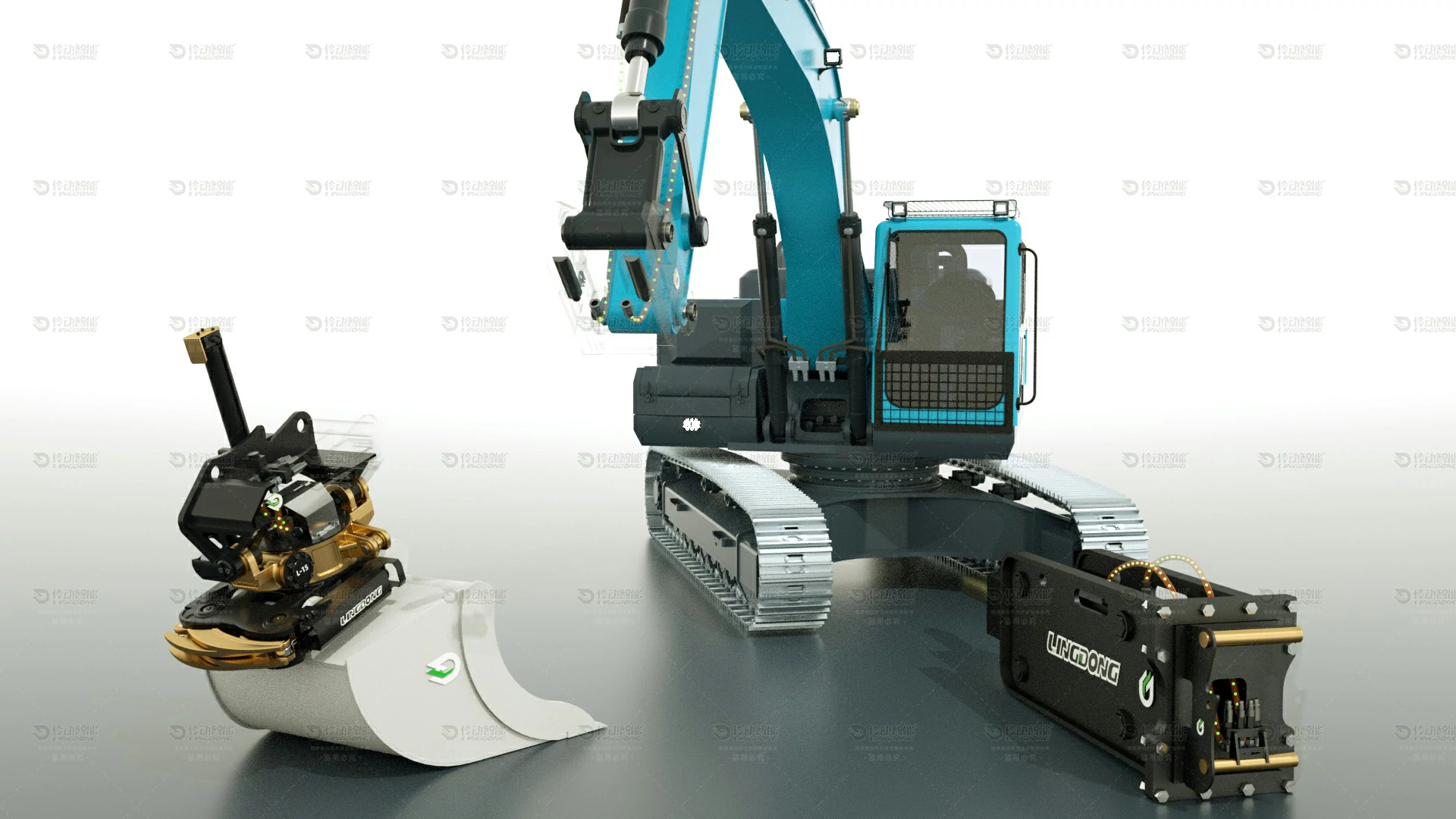

More Than Just a Tiltrotator Connection

The Lingdong LQ automatic system is not limited to tiltrotators.

It can also be used to connect:

* Hydraulic breaker hammers
* Other hydraulic excavator attachments

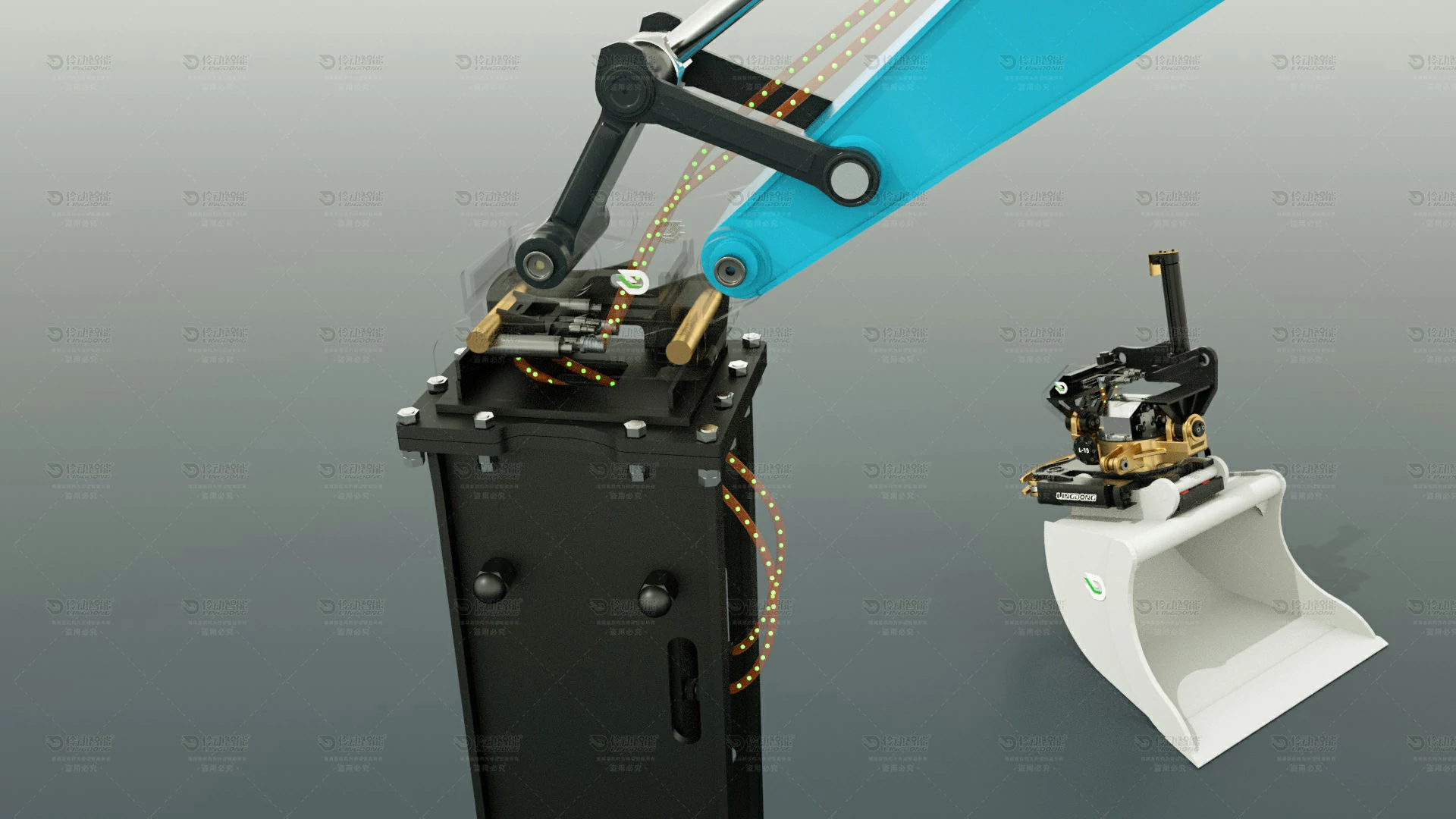

When connecting a breaker:

* The same sliding block mechanism activates
* Hydraulic connectors are automatically engaged
* Oil flow is established instantly

➡ This means attachments are ready to use immediately after coupling

—

Key Advantages of the Lingdong Tiltrotator LQ System

✅ Faster Attachment Changes

No need to leave the cab or manually connect hoses

✅ Improved Safety

Eliminates risks related to hydraulic oil leakage and improper connections

✅ Cleaner Operation

No exposed hose handling, reducing contamination

✅ Higher Jobsite Efficiency

Minimizes downtime between tool changes

—

A Core Feature of Modern Tiltrotator Systems

In advanced tiltrotator applications, automatic hydraulic connection is becoming a standard expectation.

The Lingdong tiltrotator LQ system represents this next step—integrating:

* Mechanical coupling
* Hydraulic flow
* Operational safety

into a single seamless process.

—

Driving Innovation in the China Tiltrotator Market

With technologies like the LQ automatic hydraulic connection, Lingdong tiltrotator continues to push forward the development of china tiltrotator systems, making them:

* Easier to use
* Safer to operate
* More efficient on real jobsites
