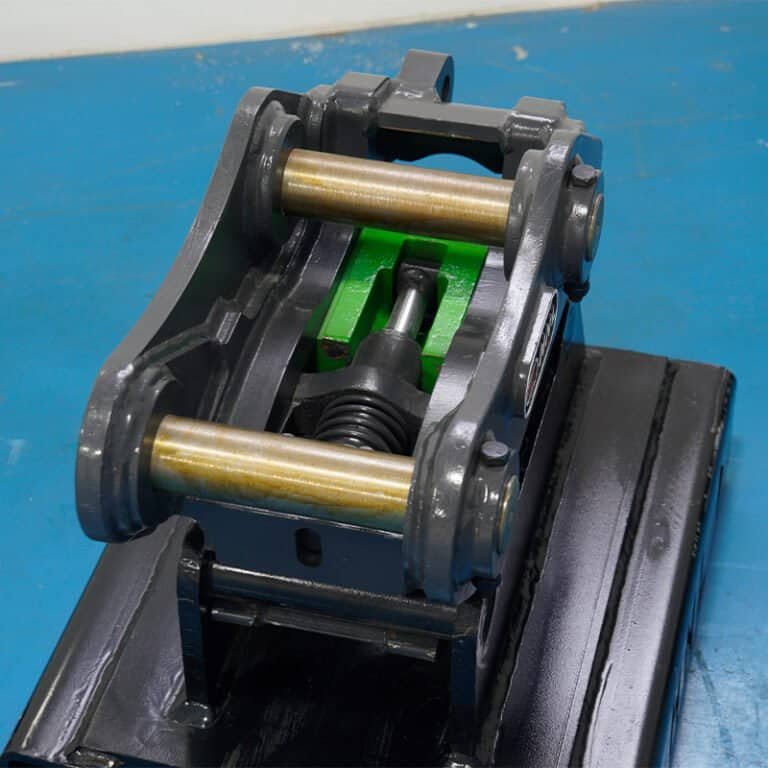

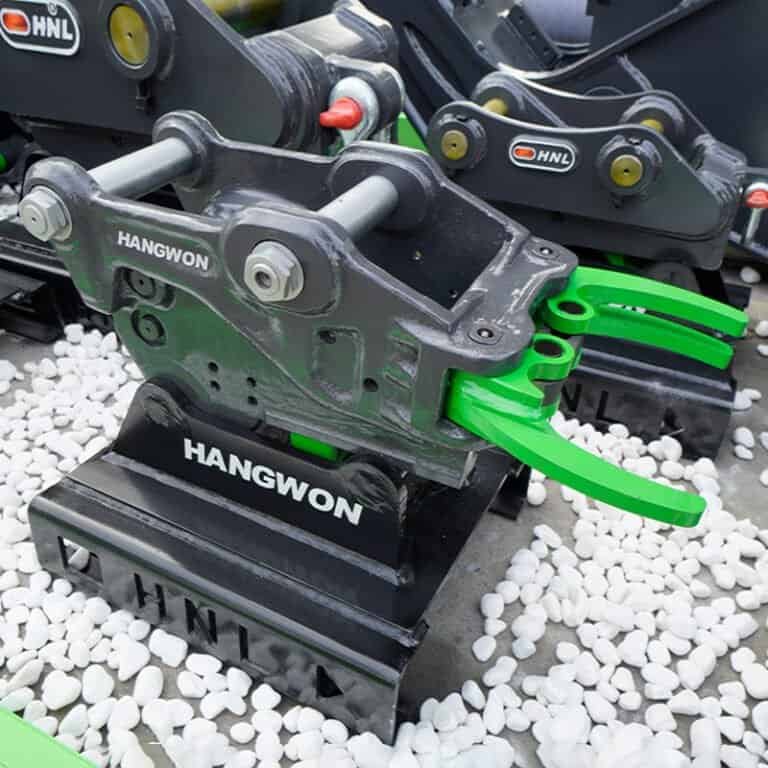

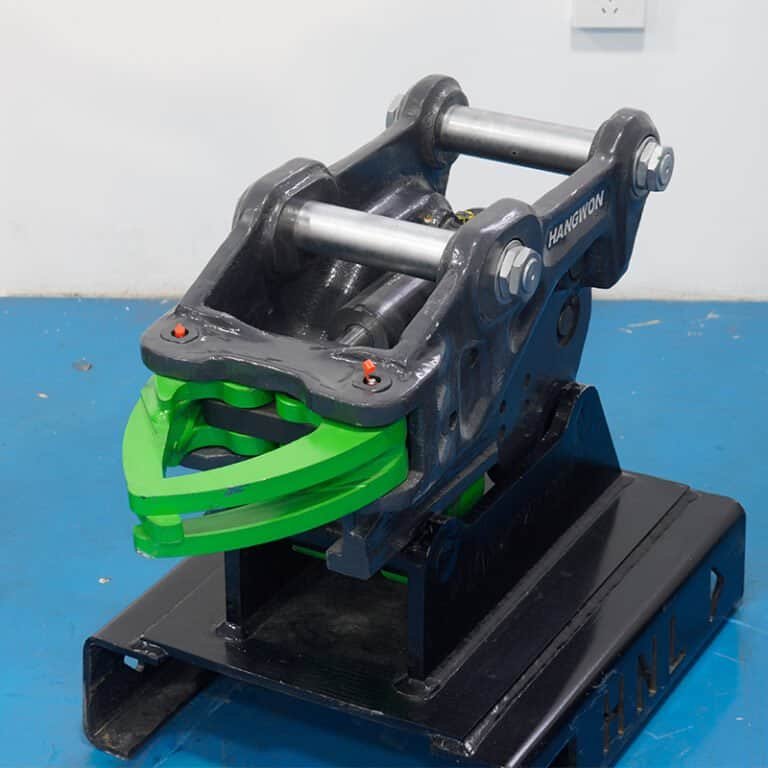

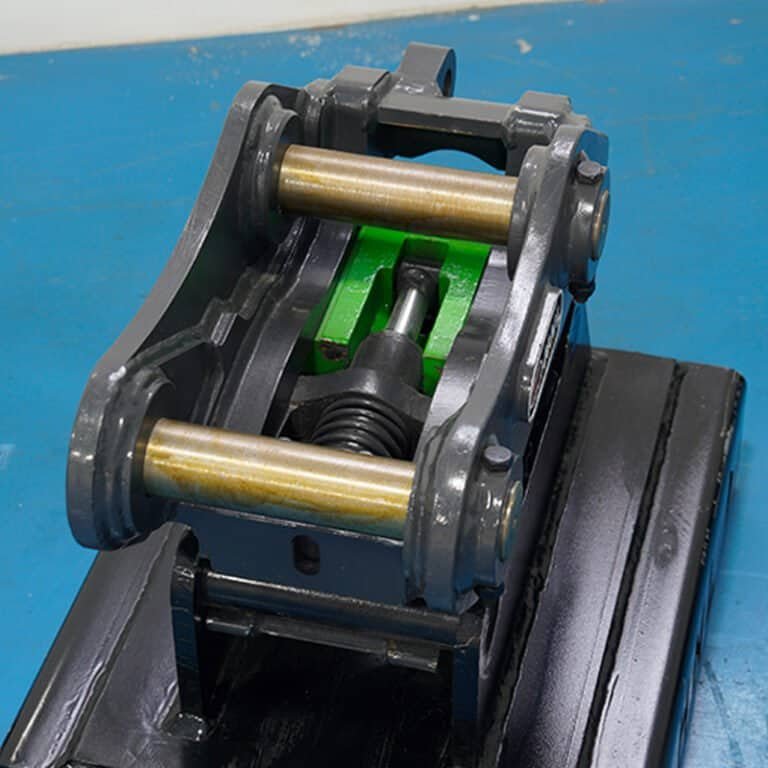

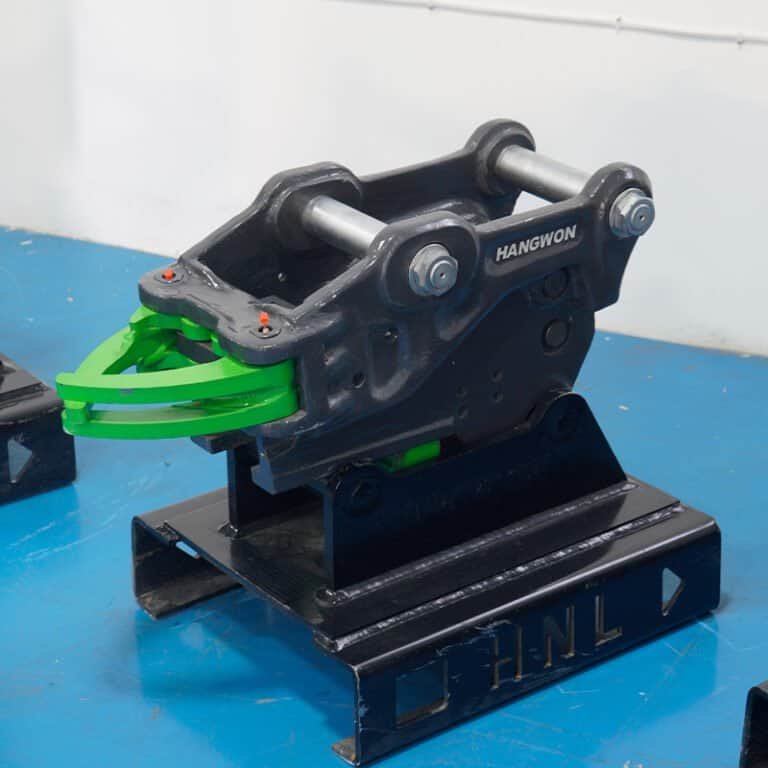

Finger clamp quick change
Suitable for excavators weighing 0.5-25 tons
The finger clamp function is added on the basis of quick change, which can easily grasp heavy objects to empower the excavator
Integral alloy casting, stable and reliable, highly compact structure
The clamp and quick change are equipped with hydraulic locks, safe and stable
Product Description
Finger clamp quick change
Suitable for excavators weighing 0.5-25 tons
The finger clamp function is added on the basis of quick change, which can easily grasp heavy objects to empower the excavator
Integral alloy casting, stable and reliable, highly compact structure
The clamp and quick change are equipped with hydraulic locks, safe and stable
Can be customized according to needs
All introductions and configurations are basic models, Lingdong Company has the right to change parameters and the final right of interpretation
Parameter table:
Model Model BFKmin BFK02 BFK04 BFK06 BFK08
Weight 55kg 70kg 90kg 180kg 370kg
Shaft Diameter
25-40mm 40-45mm 45-55mm 60-65mm 70-80mm
Center Distance
95-220mm 240-290mm 260-320mm 360-410mm 440-510mm
Maximum opening 180mm 230mm 350mm 420mm 500mm
Total Height 240mm 265mm 265mm 325mm 380mm
Compatible Excavator 6-9 ton
Compatible Excavator 0.5-1.5 ton 4-6 ton 10-15 ton 20-25 ton
