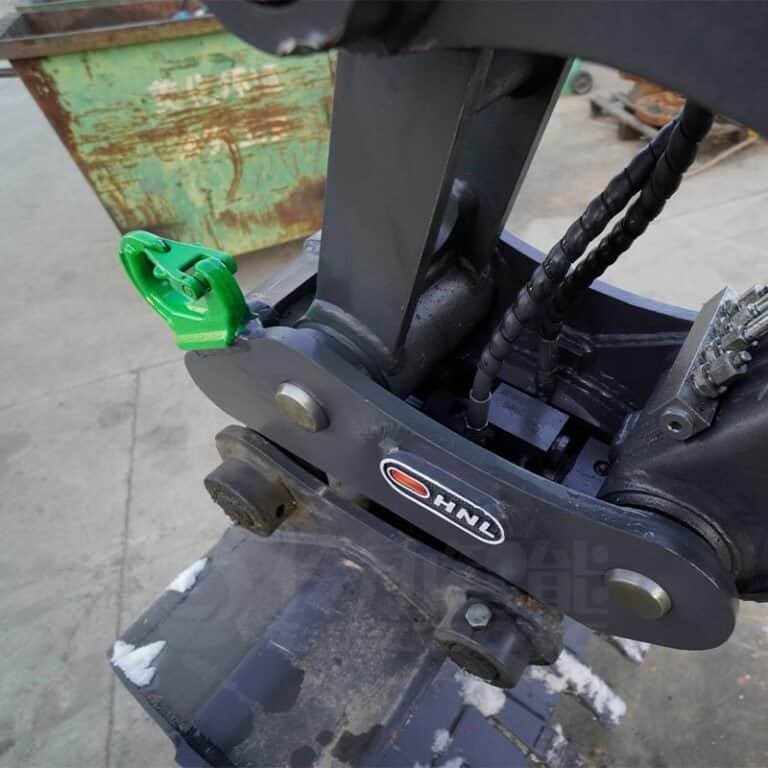

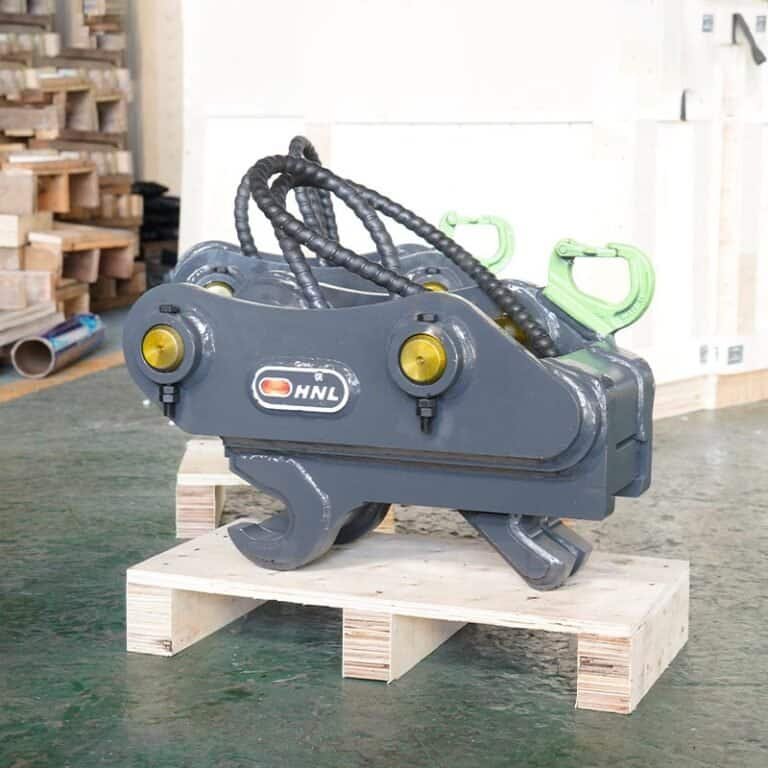

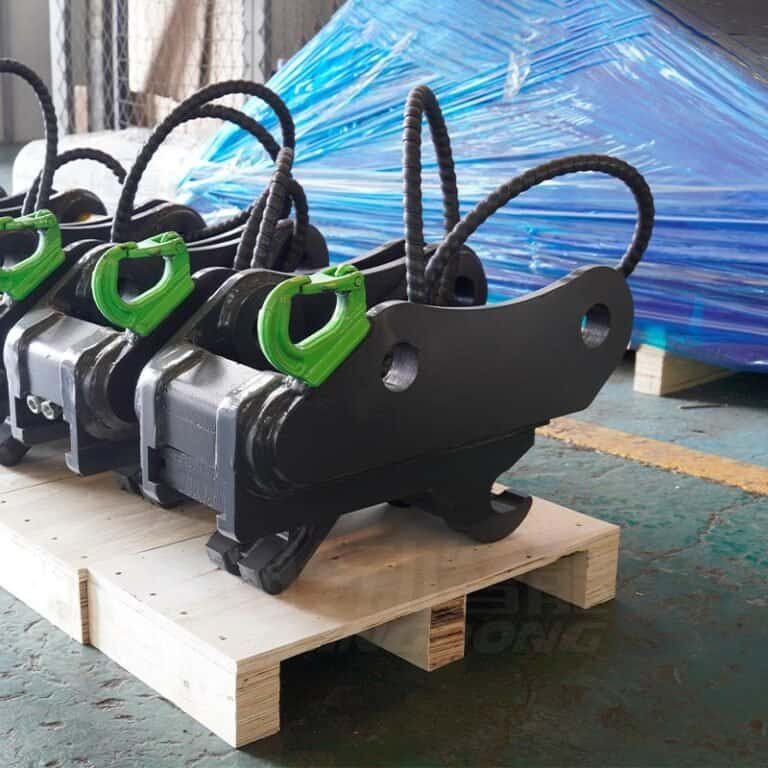

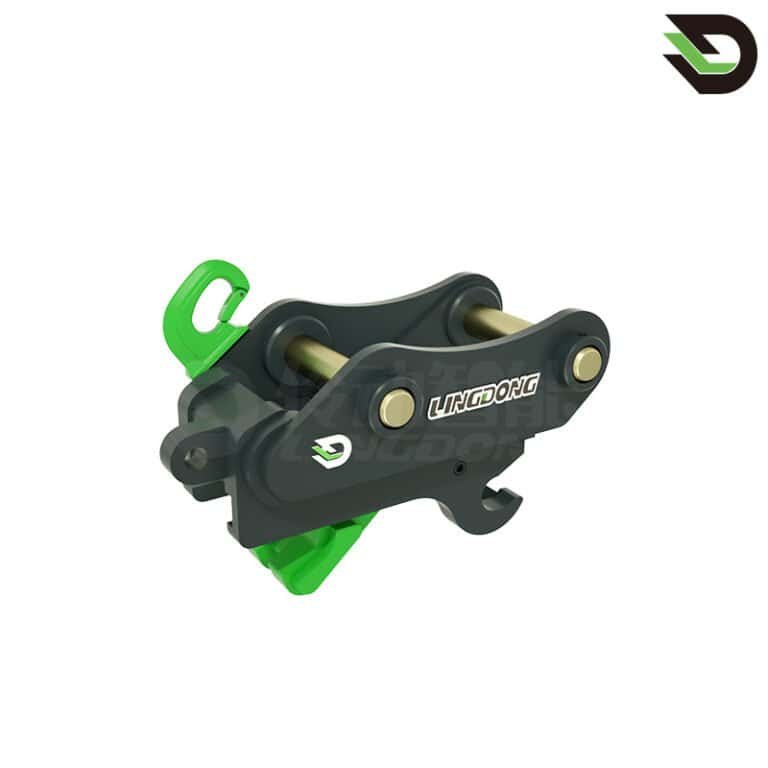

Flat-push quick coupler
Applicable to excavators weighing 1-60 tons
Integral manganese plate welding, long wear-resistant life
Compact ultra-thin design, excavator is more fuel-efficient
Three-layer locking structure, safe and reliable. The hook wedge structure is not easy to have a gap
Optional electric drive, easy installation, stable performance
Product Description
Push-type quick-change
Applicable to excavators weighing 1-60 tons
Integral manganese plate welding, long wear-resistant life
Compact ultra-thin design, excavator is more fuel-efficient
Three-layer locking structure, safe and reliable. The hook wedge structure is not easy to have a gap
Optional electric drive, easy installation, stable performance
Can be customized according to needs
All introductions and configurations are basic models, Lingdong Company has the right to change parameters and the final right of interpretation
Parameter table:
Model HBKmin/E HBK02/E HBK04/E HBK06/E HBK08 HBK10 HBK12
Weight 36kg 65kg 75kg 180kg 370kg 520kg 540kg
Shaft Diameter 25-40mm 40-45mm 45-55mm 60-65mm 70-90mm 100-110mm 100-110mm
Center Distance 95-220mm
Center Distance 220-275mm 290-350mm 350-400mm 430-500mm 550-600mm550-650mm
Voltage 24/12v 24/12v 24/12v
Height 140mm 158mm 168mm 225mm 300mm 350mm 370mm
Compatible Excavator 1-4 ton 4-7 ton 6-9 ton 10-15 ton 18-26 ton 30-38 ton 40-60 ton
