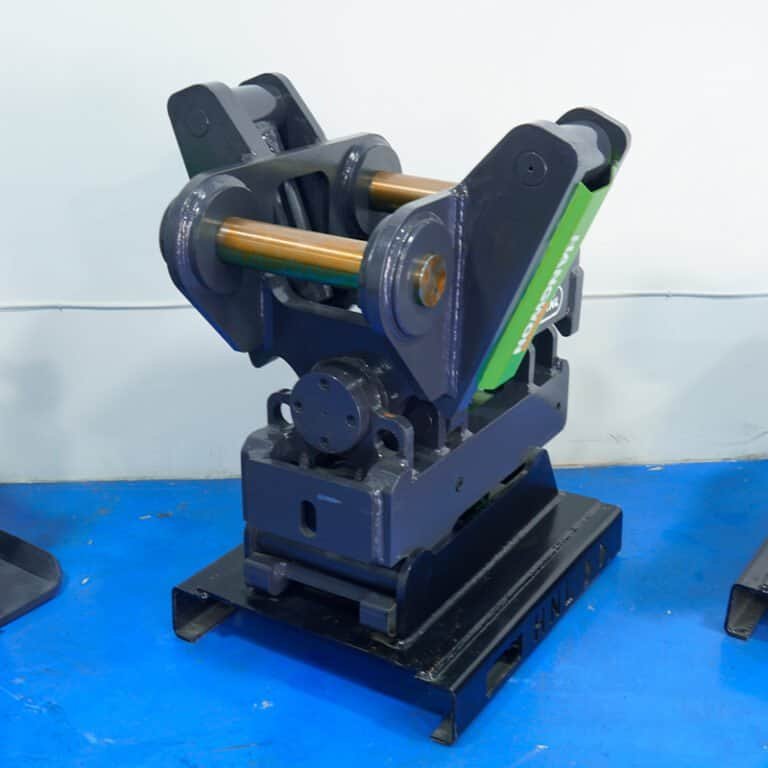

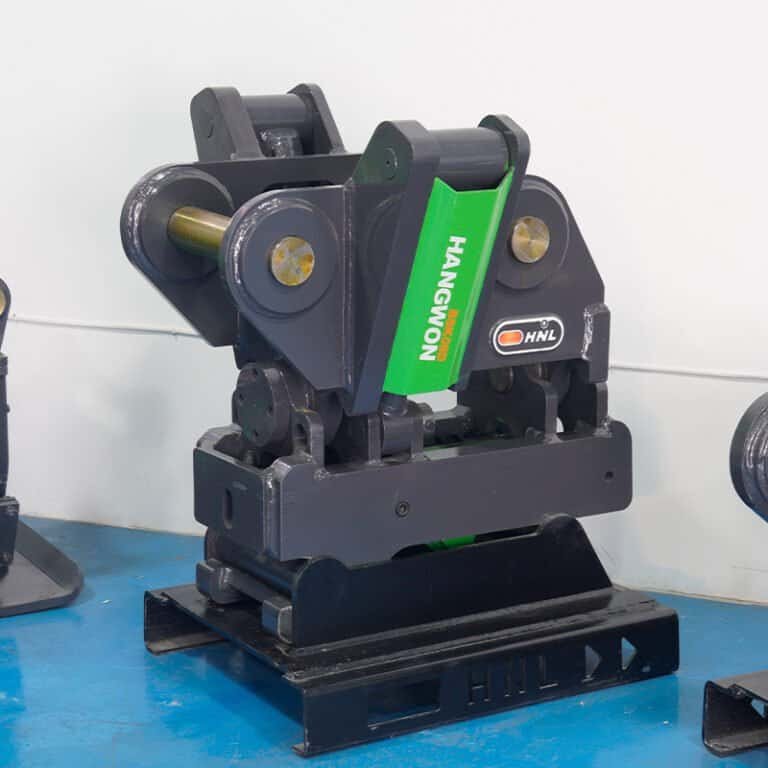

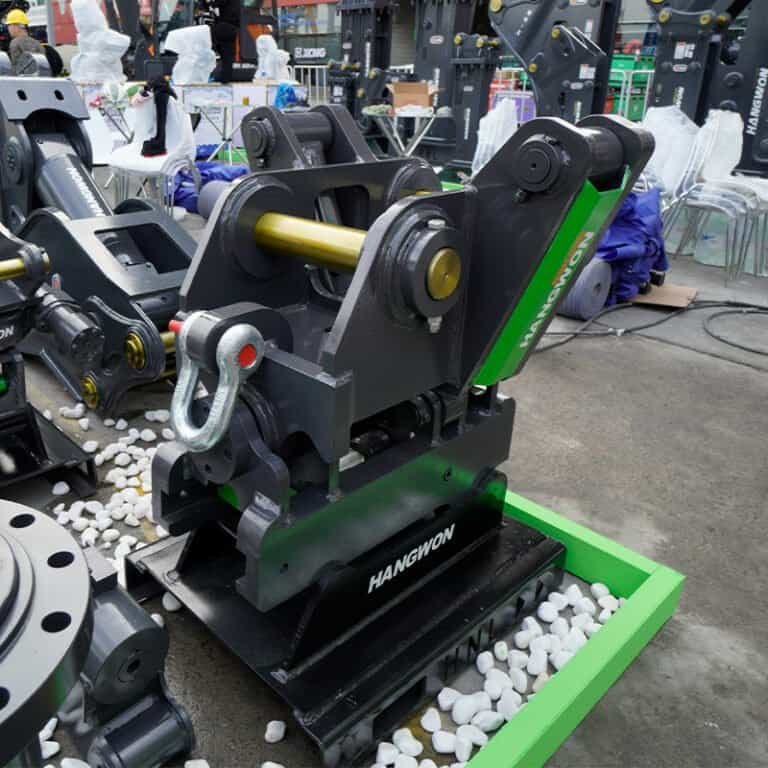

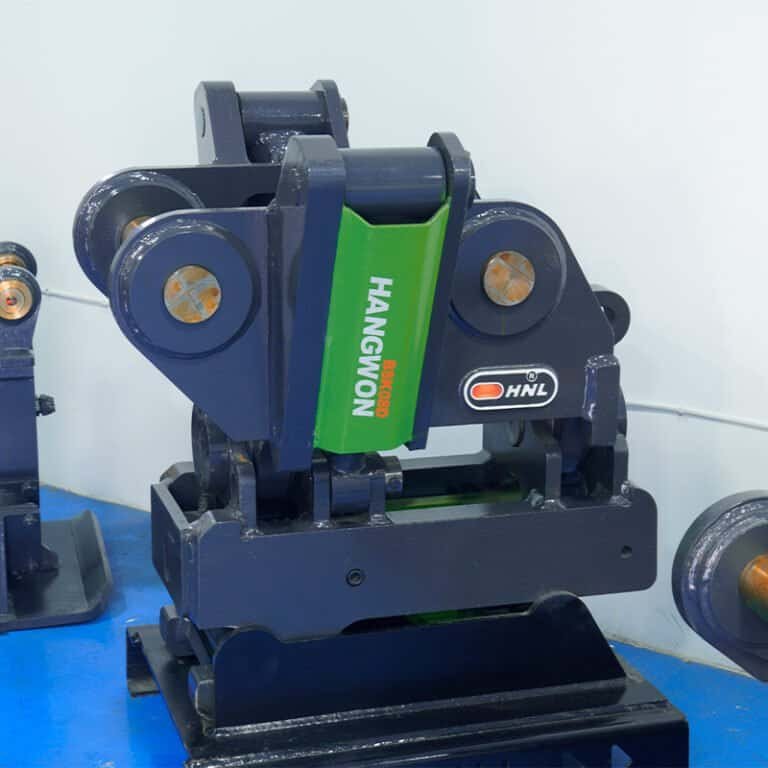

Swing quick coupler (D)
⚪Applicable to excavators weighing 10-38 tons
⚪Compact design, built-in oil circuit, smaller size
⚪High torque swing cylinder, providing strong support for construction
⚪High-grade Q345 manganese plate steel, wear-resistant. The pin is made of 42CrMo alloy steel. It can be customized according to the needs.
⚪All introductions and configurations are basic models. Lingdong Company has the right to change parameters and the final right of interpretation.
Product Description
Swing quick change (BSK-D)
| Model | BSKmin | BSKO2 | BSKO4 | BSK06-D | BSK08-D | BSK10-D |
|---|---|---|---|---|---|---|
| Weight | 58kg | 156kg | 182kg | 382kg | 622kg | 682kg |
| Shaft Diameter | 25-40mm | 40-45mm | 45-55mm | 60-65mm | 70-80mm | 100-110mm |
| Center Distance | 90-220mm | 220-270mm | 290-350mm | 350-400mm | 410-480mm | 500-600mm |
| Swing Angle | ±90° | ±90° | ±90° | ±45° | ±45° | ±45° |
| Height | 410mm | 445mm | 467mm | 500mm | 588mm | 620mm |
| Compatible Excavator | 0.5-2 ton | 4-6 ton | 6-9 ton | 10-15 ton | 20-25 ton | 30-38 ton |
Applicable to excavators weighing 10-38 tons
Compact design, built-in oil circuit, smaller size
High torque swing cylinder, providing strong support for construction
High-grade Q345 manganese plate steel, wear-resistant. The pin is made of 42CrMo alloy steel. It can be customized according to the needs.
All introductions and configurations are basic models. Lingdong Company has the right to change parameters and the final right of interpretation.
