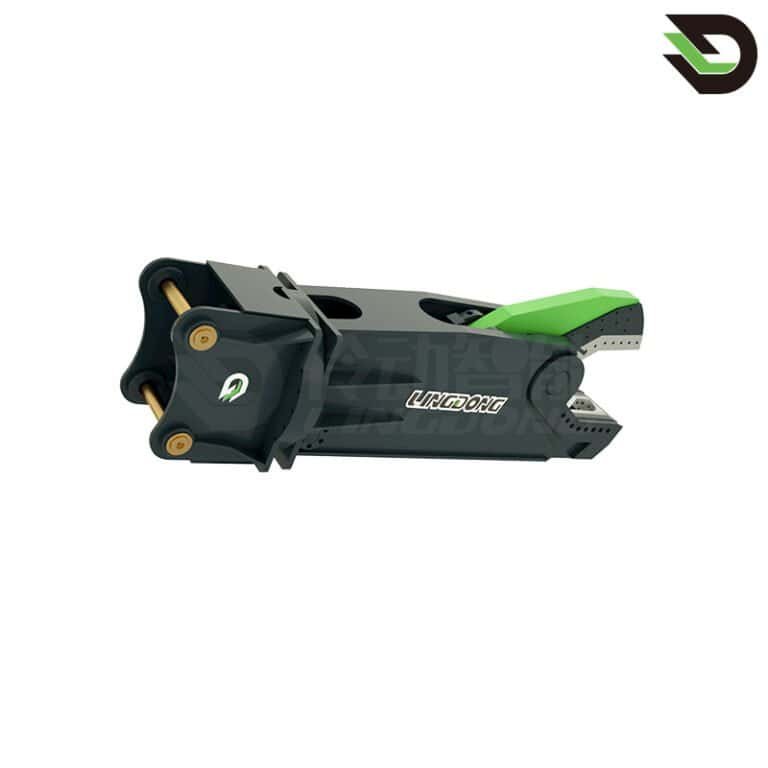

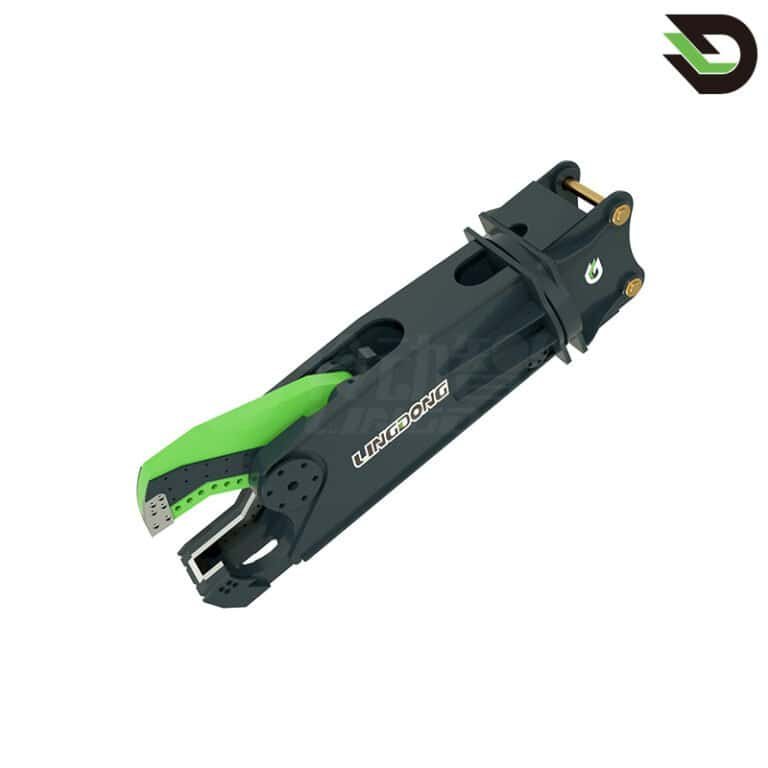

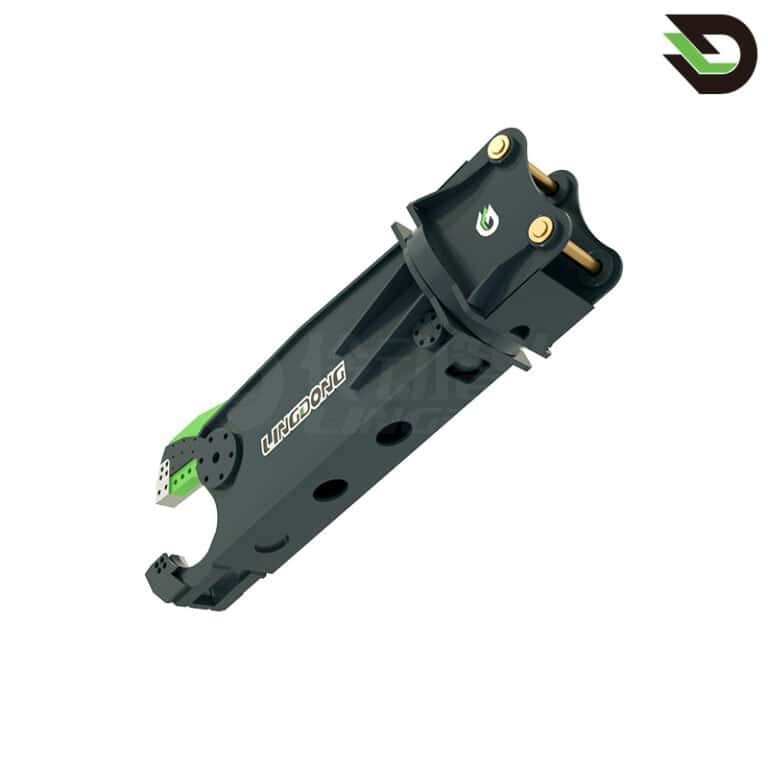

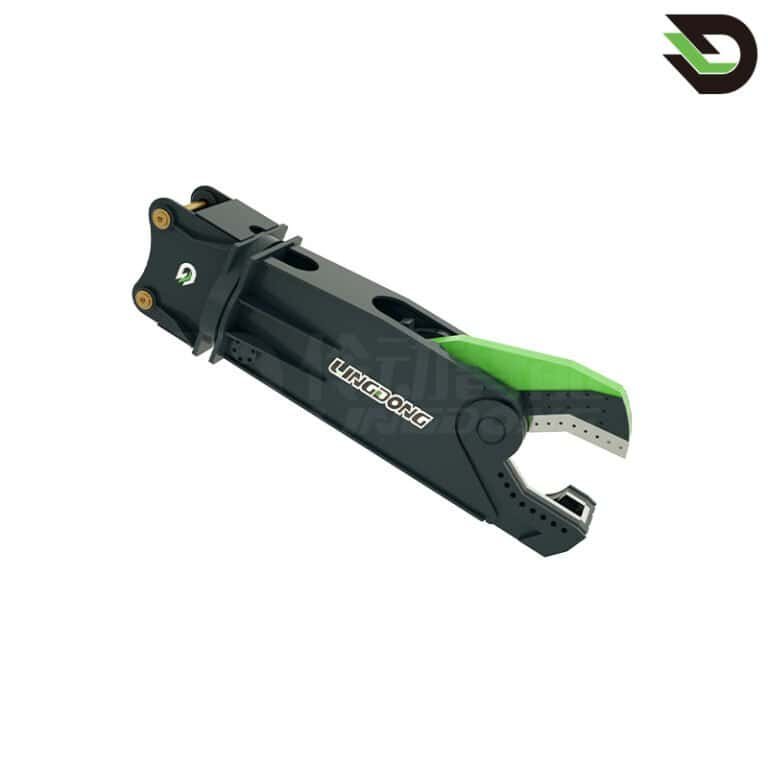

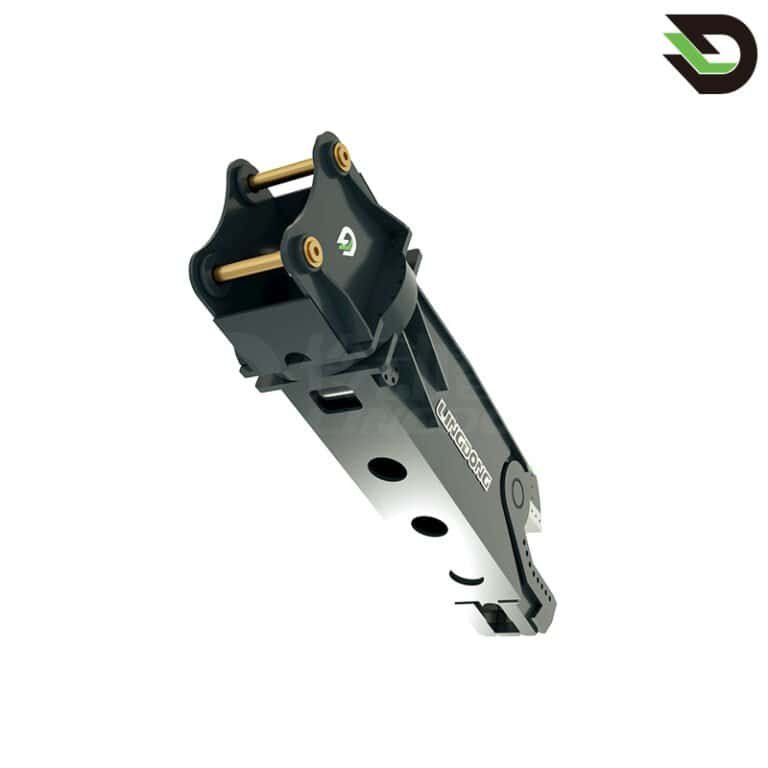

Eagle beak shear

Eagle beak shears
Suitable for excavators weighing 6-80 tons
Super hard imported blades, longer life
Reinforced cylinder, higher bite force, fast blade replacement
Can be customized according to needs
All introductions and configurations are basic models, Lingdong Company has the right to change parameters and the final right of interpretation
Parameter table:
Model Model HESO4 HESO6 HESO8 HES10 HES14 HES16
Weight
Weight 580kg 1166kg 1680kg 2522kg 3766kg 5266kg
Maximum opening
Maximum opening 250mm 360mm 480mm 600mm 800mm 1030mm
Cylinder pressure
Cylinder pressure 26mpa 27mpa 32mpa 32mpa 32mpa 32mpa
Working flow 70-100 L/min 70-100 L/min 100-200L/min 150-250 L/min 300-500 L/min 600-800 L/min
Dimension
Dimension 1880*560*448 2459*600*716 2900*650*930 3300*800*1037 3725*840*1314 3891*900*1505
Compatible Excavator
Compatible Excavator 6-10 ton 10-16 ton 20-25 ton 20-40 ton 30-60 ton 40-80 ton
